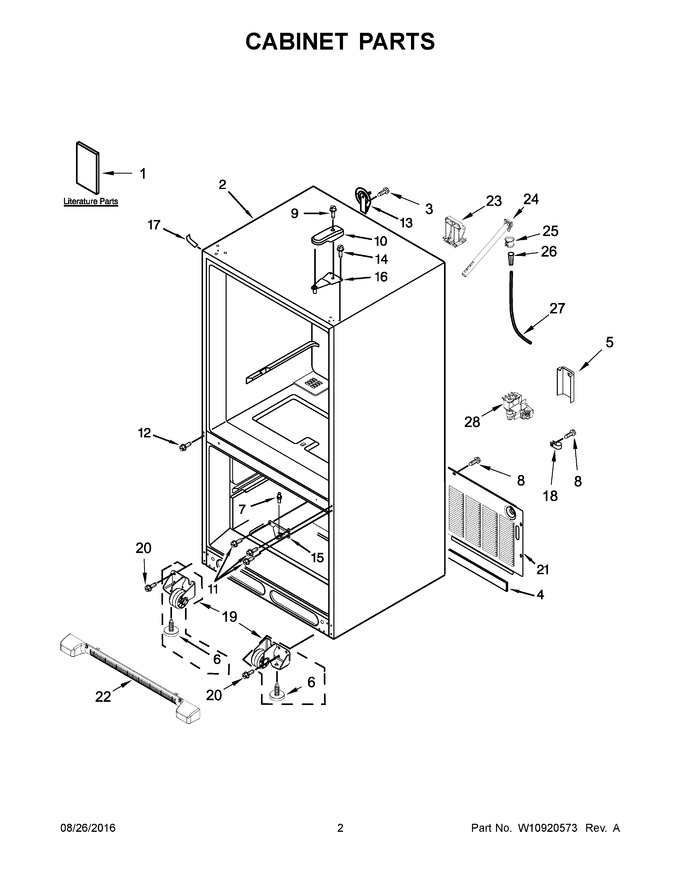

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10621529 | Use And Care Guide |
|
- | |||||
| 2 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 3 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.00 | |||||
| 4 | B5759655 | Gasket |
|
$ 12.41 | |||||
| 5 | W10208592 | Cover, Valve |
|
- | |||||
| 6 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 7.85 | ||||
| 7 | WP67006642 | Pin, Center Hinge (Replaces: 10351006) |
|
$ 7.93 | |||||
| 8 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.95 | ||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.19 | ||||
| 10 | 67001014 | Cover, Hinge (white) (Replaces: 12477601W) |
|
$ 21.28 | |||||
| 11 | WP489349 | Screw (Replaces: 12990101) |
|
Immediately | $ 7.88 | ||||
| 12 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.00 | |||||
| 13 | 12726003 | Cover, Water Line |
|
$ 18.28 | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 7.88 | ||||
| 15 | W11689473 | Hinge, Center (white) (Replaces: 12607103WD) |
|
$ 66.47 | |||||
| 16 | WP12566606ED | Hinge, Top (Replaces: 12566606ED) |
|
Immediately | $ 44.89 | ||||
| 17 | 12587703W | Cover, Corner (white) |
|
$ 21.81 | |||||
| 18 | W11456069 | Clamp, Tube (Replaces: M0108107) |
|
Immediately | $ 21.33 | ||||
| 19 | W11820444 | Assembly, Roller (left Hand) (Replaces: W10515763) |
|
Immediately | $ 35.57 | ||||
| 20 | 67006564 | Screw (Replaces: W10709365) |
|
Immediately | $ 7.69 | ||||
| 21 | W10210978 | Cover, Unit |
|
$ 192.17 | |||||
| 22 | WPW10534166 | Grille, Toe (white) (Replaces: W10534166) |
|
Immediately | $ 76.61 | ||||
| 23 | W10485986 | Guide, Waterline |
|
Immediately | $ 12.33 | ||||
| 24 | W11176463 | Elbow, Fill Tube (Replaces: 10463203) |
|
Immediately | $ 114.15 | ||||
| 25 | WPM0114003 | Clip, Speed (Replaces: M0114003) |
|
$ 11.05 | |||||
| 26 | WPA3223101 | Insert, Tube (Replaces: A3223101) |
|
Immediately | $ 7.82 | ||||
| 27 | WPW10449192 | Tube, Plastic (Replaces: W10449192) |
|
$ 117.04 | |||||
| 28 | WPW10498976 | Valve, Inlet (Replaces: W10498976) |
|
Immediately | $ 126.10 | ||||
| 10A | 67001012 | Cover, Hinge (black) (Replaces: 12477601B) |
|
$ 47.34 | |||||
| 15A | WP12607104ED | Hinge, Center (black) (Replaces: 12607104ED) |
|
$ 152.73 | |||||
| 17A | 67003485 | Cover, Corner (black) (Replaces: 12587703B) |
|
Immediately | $ 21.09 | ||||
| 19A | W11820445 | Assembly, Roller (right Hand) (Replaces: W10515762) |
|
Immediately | $ 35.57 | ||||
| 1A | W10853961 | Energy Guide |
|
- | |||||
| 1B | W10517966 | Tech Sheet |
|
- | |||||
| 22A | WPW10534167 | Grille, Toe (black) (Replaces: W10534167) |
|
$ 91.42 |
