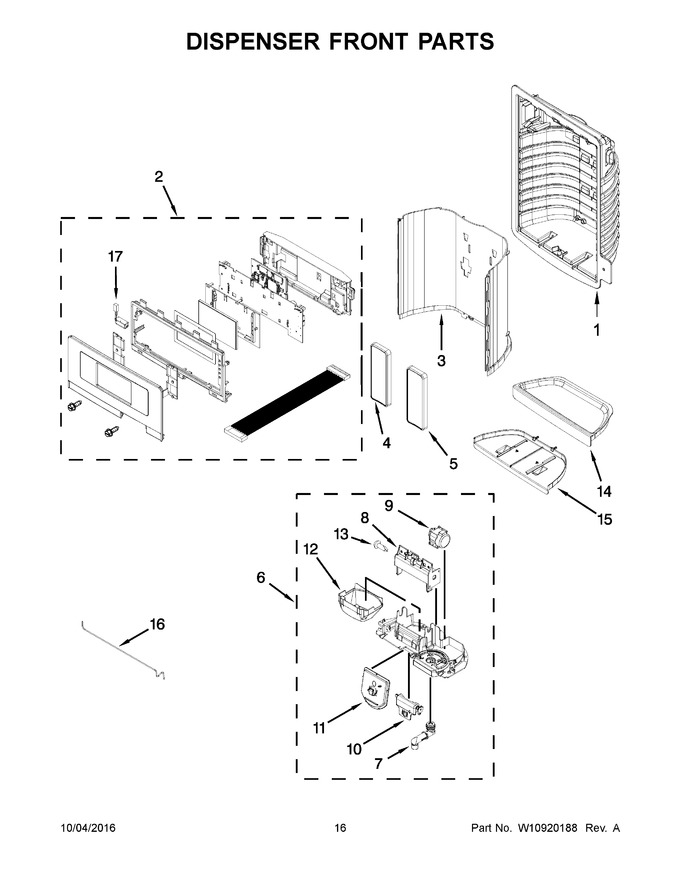

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W10860815		Assembly, User Interface		Appelez-nous	-
3	W11045975		Wall, Dispenser False (white)   (Replaces: W10215699)		Appelez-nous	-
4	W10368729		Pad, Ice (black)   (Replaces: W10334798)				$ 308.78
5	W10368729		Pad, Water (black)   (Replaces: W10334822)				$ 308.78
6	WPW10353552		Assembly, Seperator   (Replaces: W10353552)				$ 166.29
7	W11227371		Assembly, Spigot Body   (Replaces: 2316647)				$ 136.38
8	W10174827		Bracket, Ice Door				$ 76.42
9	WPW10205979		Motor, Ice Door   (Replaces: W10205979)			Immediately	$ 102.48
10	WPW10346124		Support, Ice Door   (Replaces: W10346124)				$ 39.86
11	WPW10317279		Door, Ice   (Replaces: W10317279)				$ 19.54
12	WPW10435760		Guide, Ice   (Replaces: W10339578)				$ 22.80
13	W10174818		Clip, Motor Coupling		Appelez-nous	-
14	W11045970		Tray, Dispenser (white)   (Replaces: W10267869)				$ 65.93
15	W10267860		Tray, Dispenser Slide (white)		Appelez-nous	-
16	WPW10511930		Waterline, Door   (Replaces: W10511930)				$ 116.13
17	W11290115		Assembly, Led   (Replaces: W10238083)				$ 84.45
14A	W11045971		Tray, Dispenser (black)   (Replaces: W10267870)				$ 65.90
15A	W10267861		Tray, Dispenser Slide (black)				$ 74.39
3A	W11045976		Wall, Dispenser False (black)   (Replaces: W10233560)				$ 43.18
4A	WPW10368730		Pad, Ice (grey)   (Replaces: W10334801)			Immediately	$ 304.26
5A	WPW10368730		Pad, Water (grey)   (Replaces: W10334825)			Immediately	$ 304.26
