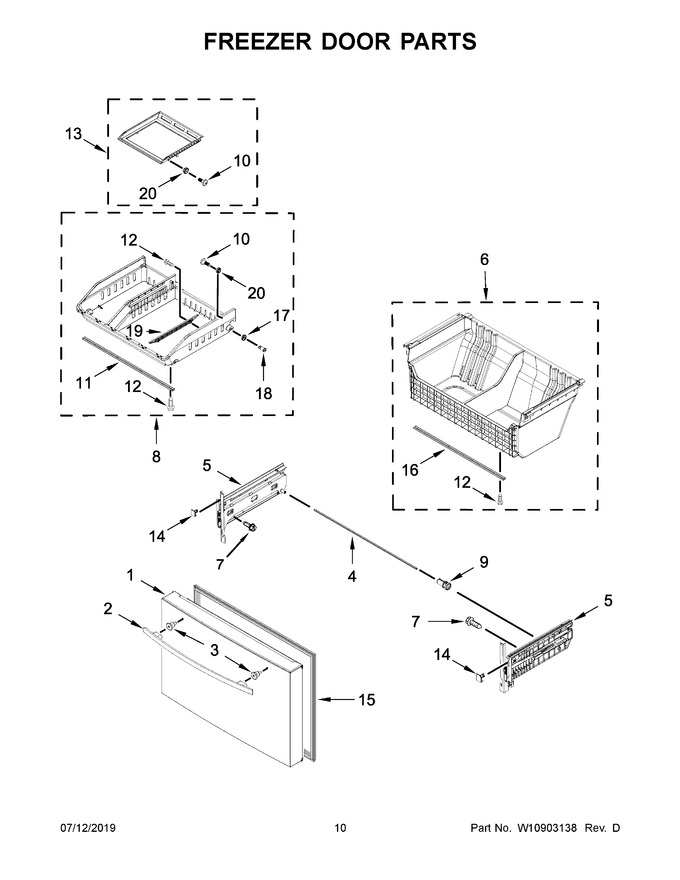

06 - Freezer Door Parts


07 - Unit Parts


08 - Shelf Parts


09 - Dispenser Front Parts


10 - Icemaker And Ice Container Parts


11 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10849523		Door, Freezer (includes Door Gasket) (stainless)   (Replaces: W10832266)				$ 1,274.88
2	W10798671		Handle, Door (stainless)				$ 207.41
3	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
4	W11173556		Shaft, Rack   (Replaces: W10851956)				$ 32.38
5	W10795844		Assembly, Bracket (left Hand)				$ 292.02
6	W10795852		Assembly, Bottom Pan		Appelez-nous	-
7	WP67006908		Screw   (Replaces: 12990518)			Immediately	$ 8.78
8	W11124053		Assembly, Top Pan				$ 296.35
9	WPW10277361		Collar, Gear   (Replaces: W10277361)				$ 12.09
10	67006692		Screw   (Replaces: 12991401)				$ 10.79
11	W11677723		Support, Pan   (Replaces: W10469177)			Immediately	$ 155.10
12	WP489443		Screw (stainless)   (Replaces: 489443)			Immediately	$ 8.33
13	W10906611		Assembly, Upper Half Pan   (Replaces: W10795836)		Appelez-nous	-
14	W10795821		Stop, Pan (left Hand)				$ 88.29
15	W11585972		Gasket, Door (grey)   (Replaces: W10868406)				$ 244.55
16	W10697812		Bar, Support		Appelez-nous	-
17	W10874023		Roller		Appelez-nous	-
18	W10839805		Axle, Roller		Appelez-nous	-
19	W10830660		Rail, Guard		Appelez-nous	-
20	W10795813		Roller		Appelez-nous	-
14A	W10795823		Stop, Pan (right Hand)				$ 88.29
5A	W10795848		Assembly, Bracket (right Hand)				$ 292.07
