View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

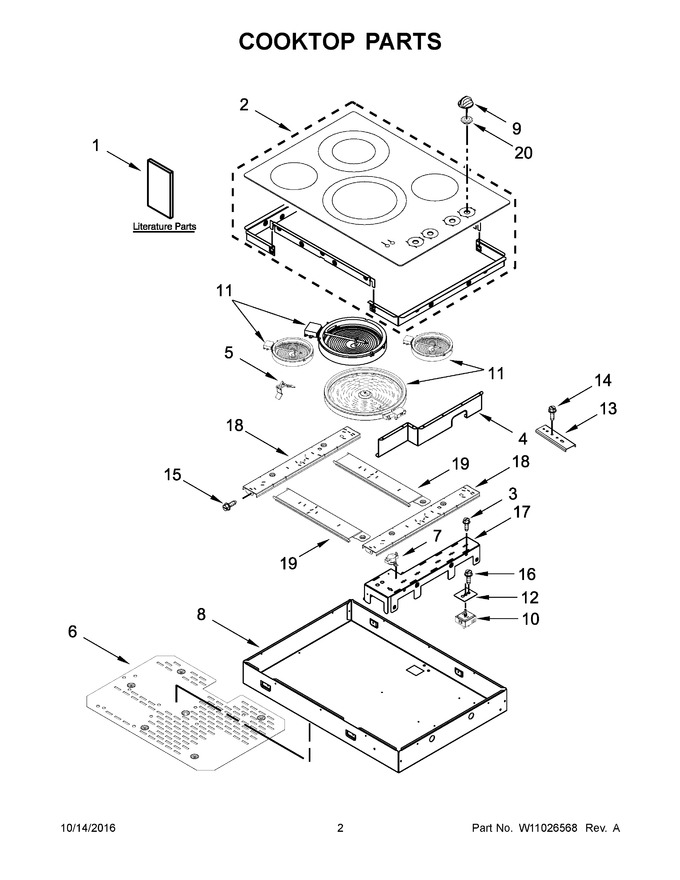

02 - Cooktop Parts
03 - Optional Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10574205 | Instructions, Installation |
|
- | |||||
| 2 | W10570702 | Cooktop (black) |
|
$ 545.01 | |||||
| 3 | W10443110 | Screw |
|
Immediately | $ 15.25 | ||||
| 4 | W10311796 | Shield, Switch |
|
- | |||||
| 5 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 6 | W10422067 | Bottom, Heat Shield |
|
- | |||||
| 7 | W10464566 | Switch, Tod High Limit |
|
Immediately | $ 195.77 | ||||
| 8 | W10410497 | Box, Burner |
|
- | |||||
| 9 | W11845346 | Knob, Control (black) (Replaces: W10895122) |
|
$ 49.99 | |||||
| 10 | WPW10326246 | Switch, Infinite (left Front) (Replaces: W10326246) |
|
$ 153.02 | |||||
| 11 | W11171119 | Element (1200w) (left Front & Right Rear) (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 12 | 3183956 | Seal, Switch Cover |
|
$ 48.77 | |||||
| 13 | 8186533 | Bracket, Cooktop Mounting (Replaces: 4455917) |
|
$ 92.86 | |||||
| 14 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 7.55 | |||||
| 15 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 16 | WP7101P309-60 | Screw (Replaces: 7101P309-60) |
|
Immediately | $ 7.30 | ||||
| 17 | W10484349 | Plate, Switch |
|
- | |||||
| 18 | W10457917 | Rail, Vertical |
|
- | |||||
| 19 | W10311790 | Rail, Horizontal |
|
- | |||||
| 20 | WPW10293874 | Grommet (black) (Replaces: W10293874) |
|
Immediately | $ 8.46 | ||||
| 10A | W10431995 | Switch, Infinite (left Rear) |
|
$ 159.41 | |||||
| 10B | WPW10434447 | Switch, Infinite (right Front) (Replaces: W10434447) |
|
$ 134.69 | |||||
| 10C | WP74007840 | Switch, Infinite (right Rear) (Replaces: 7403P755-60) |
|
Immediately | $ 190.46 | ||||
| 11A | W11517959 | Element (3000w/1400w Dual) (left Rear) (Replaces: W10275048) |
|
Immediately | $ 134.44 | ||||
| 11B | W10823727 | Element (3000/1900w) (right Front) (Replaces: W10711900) |
|
Immediately | $ 342.63 | ||||
| 1A | W10351318 | Instructions, Undercounter Install |
|
- | |||||
| 1B | W10622708 | Guide, Use & Care |
|
- | |||||
| 1C | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1D | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1E | W10488782 | Diagram, Wiring |
|
- | |||||
| NI | WP8286642 | Tape, Foam (Replaces: 8286642) |
|
Immediately | $ 117.41 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10742416 | Harness, Main |
|
- | |||||
| NI | W10478329 | Jumper |
|
- | |||||
| NI | W10316661 | Gasket |
|
Immediately | $ 100.82 | ||||
| NI | 7111P020-60 | Clamp, Wire |
|
- | |||||
| NI | W10491984 | Seal, Limiter (Replaces: 3192439) |
|
$ 12.05 | |||||
| NI | W11685004 | Insulation, Control Knob (Replaces: W10464568) |
|
- | |||||
| NI | W10324729 | Grommet, Wire |
|
$ 9.03 | |||||
| NI | 8008P068-60 | Grommet, Wire |
|
$ 16.79 |
