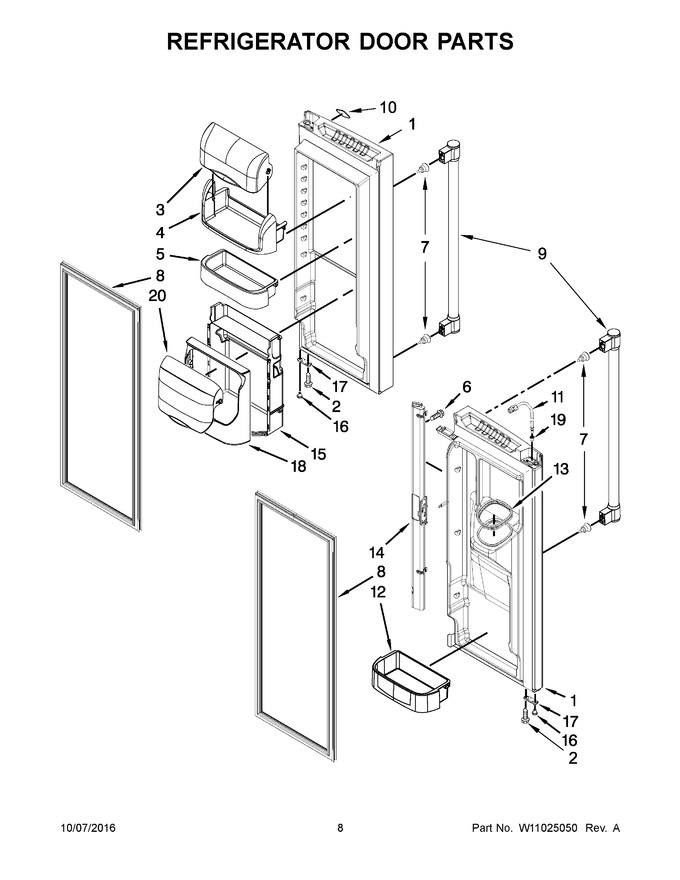

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10915645 | Door, Refrigerator Left Hand (stainless) (Replaces: W10890295) |
|
$ 1,194.56 | |||||
| 2 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.57 | |||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 82.67 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 88.01 | ||||
| 5 | WP67006313 | Bucket, Shelf (Replaces: 12945801SP) |
|
Immediately | $ 84.62 | ||||
| 6 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 7 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 8 | W10830048 | Gasket, Door Left Hand (grey) |
|
Immediately | $ 251.89 | ||||
| 9 | W10879677 | Handle, Door (stainless) (Replaces: W10838130) |
|
Immediately | $ 215.42 | ||||
| 10 | WPW10612926 | Badge (chrome) (Replaces: W10612926) |
|
Immediately | $ 39.60 | ||||
| 11 | W10275942 | Tube, Water |
|
Immediately | $ 120.27 | ||||
| 12 | WP12918704 | Bucket, Gallon (clear) (Replaces: 12918704) |
|
Immediately | $ 87.02 | ||||
| 13 | WPW10287601 | Seal, Ice Chute (Replaces: W10287601) |
|
Immediately | $ 32.76 | ||||
| 14 | WP12722813AP | Mullion, Door (grey) (Replaces: 12722813AP) |
|
$ 340.89 | |||||
| 15 | W11266639 | Frame, Chiller (rear) (Replaces: 12945601SP) |
|
$ 269.63 | |||||
| 16 | WP12028505AP | Closure, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 17 | W11703060 | Stop, Door (grey) (Replaces: 12968202AP) |
|
$ 15.46 | |||||
| 18 | W11266639 | Frame, Chiller (front) (Replaces: 12945501SP) |
|
$ 269.63 | |||||
| 19 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 20 | WP67006312 | Door, Chiller (Replaces: 12945701SP) |
|
Immediately | $ 86.29 | ||||
| 1A | W10910856 | Door, Refrigerator Right Hand (stainless) (Replaces: W10890289) |
|
Immediately | $ 1,175.50 | ||||
| 8A | W10830055 | Gasket, Door Right Hand (grey) |
|
Immediately | $ 229.10 |
