SELECT A DIAGRAM

01 - Cover Sheet


02 - Top And Cabinet Parts

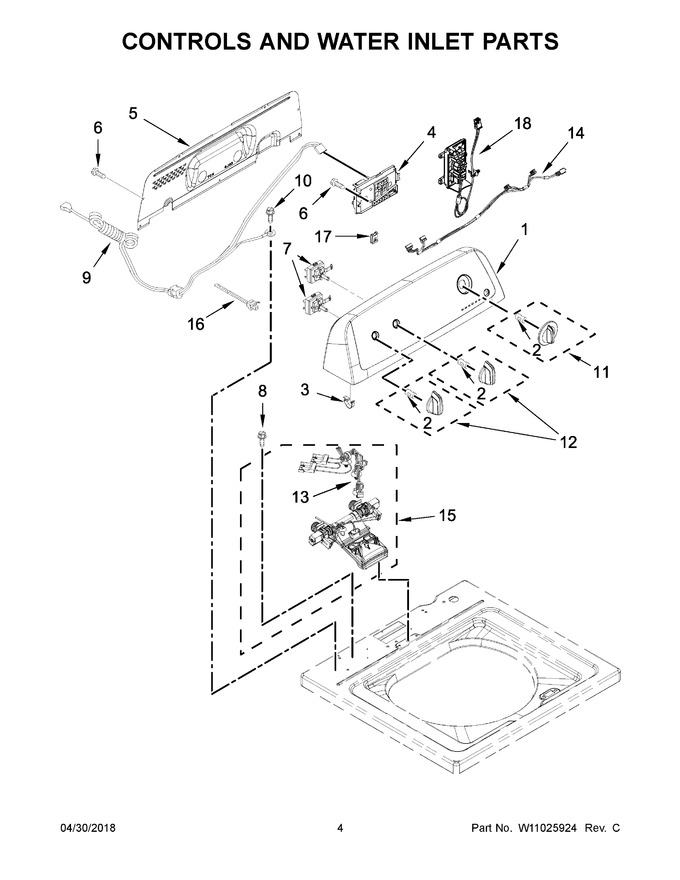

03 - Controls And Water Inlet Parts


04 - Basket And Tub Parts


05 - Gearcase, Motor And Pump Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11027903		Panel, Console   (Replaces: W10774511)		Appelez-nous	-
2	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
3	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
4	W11125190		Control Unit Assembly, Machine And Motor   (Replaces: W11099825)		Appelez-nous	-
5	W10409320		Panel, Console Rear Cover				$ 263.79
6	W11685943		Screw   (Replaces: W10660565)				$ 14.97
7	WPW10414397		Switch, Rotary Encoder (3 Position)   (Replaces: W10414397)				$ 136.10
8	WPW10213953		Screw   (Replaces: W10213953)			Immediately	$ 7.55
9	W10836356		Cord, Universal Power		Appelez-nous	-
10	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 8.20
11	WPW10711289		Assembly, Timer Knob (white)   (Replaces: W10711289)			Immediately	$ 8.33
12	WPW10453947		Assembly, Control Knob (white)   (Replaces: W10453947)				$ 54.76
13	W10917060		Harness, Valve		Appelez-nous	-
14	W11256701		Harness, Upper   (Replaces: W10694679)				$ 185.08
15	W11038628		Inlet Assembly, Water   (Replaces: W11026622)				$ 244.90
16	WPW10339879		Tie, Cable   (Replaces: W10339879)				$ 8.30
17	W11213336		Nut, "u   (Replaces: W10298336)				$ 8.13
18	W11254883		Line Filter Assy   (Replaces: W10906191)		Appelez-nous	-
NI	WPW10476822		10a Cord Adapter (european)   (Replaces: W10476822)				$ 80.90
NI	N/P		Adapter, Power Cord		Appelez-nous	-
NI	W10446855		10a Cord Lock		Appelez-nous	-
NI	WPW10476820		10a Cord Adapter (british)   (Replaces: W10476820)				$ 28.04

    View Diagram in Separate Window       Print Part List
