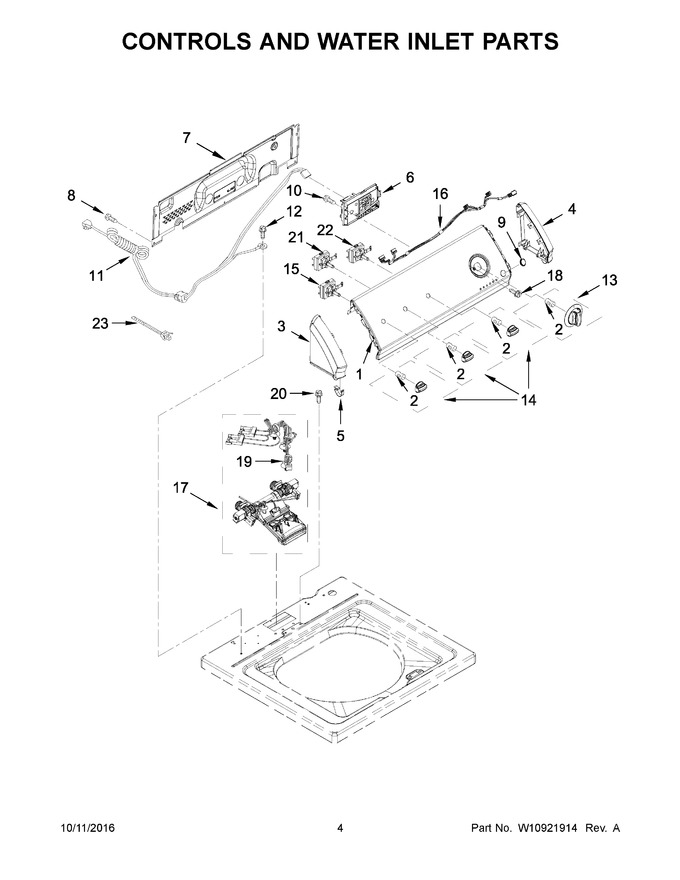

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10740618 | Panel, Console |
|
- | |||||
| 2 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 3 | WP8559502 | Endcap Assembly, Left Hand (white) (Replaces: 8559502) |
|
$ 72.99 | |||||
| 4 | WP8559501 | Endcap Assembly, Right Hand (white) (Replaces: 8559501) |
|
$ 72.77 | |||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 6 | W11116523 | Control Unit Assembly (Replaces: W10864959) |
|
- | |||||
| 7 | WPW10461159 | Panel, Console Rear Cover (Replaces: W10461159) |
|
Immediately | $ 360.43 | ||||
| 8 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 8.40 | ||||
| 9 | W10272474 | Pushbutton, Start |
|
- | |||||
| 10 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 11 | W10877409 | Cord, Power (Replaces: W10737739) |
|
$ 130.00 | |||||
| 12 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 8.20 | ||||
| 13 | W10317457 | Knob, Timer Assembly (grey) |
|
- | |||||
| 14 | W10317458 | Knob, Control Assembly (grey) |
|
- | |||||
| 15 | WPW10285517 | Switch, Rotary Encoder (3 Position) (Replaces: W10285517) |
|
$ 135.86 | |||||
| 16 | W10786098 | Harness, Upper |
|
- | |||||
| 17 | W11038689 | Inlet Assembly, Water (Replaces: W10776841) |
|
Immediately | $ 81.37 | ||||
| 18 | WP3400818 | Screw (Replaces: 3400818) |
|
$ 8.81 | |||||
| 19 | W10678671 | Harness, Valve |
|
$ 185.37 | |||||
| 20 | WPW10213953 | Screw (Replaces: W10213953) |
|
Immediately | $ 7.55 | ||||
| 21 | WPW10285518 | Switch, Rotary Encoder (5 Position) (Replaces: W10285518) |
|
Immediately | $ 117.42 | ||||
| 22 | WPW10285511 | Switch, Rotary Encoder (2 Position) (Replaces: W10285511) |
|
Immediately | $ 182.10 | ||||
| 23 | W10339680 | Cable Tie |
|
- |
