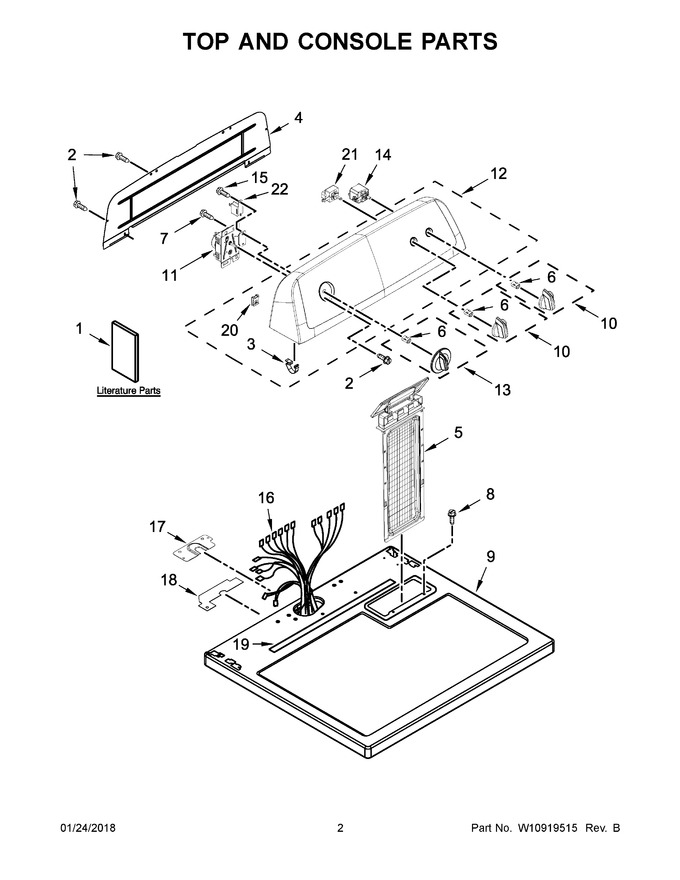

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10849528		Use And Care Guide		Appelez-nous	-
2	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
3	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
4	WPW10416486		Panel, Rear Console   (Replaces: W10416486)				$ 132.39
5	W11778253		Lint Screen (white)   (Replaces: W10717210)			Immediately	$ 54.63
6	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
7	WP90767		Screw   (Replaces: 90767)			Immediately	$ 8.25
8	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.76
9	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 349.25
10	WPW10453947		Knob, Push To Start (white)   (Replaces: W10453947)				$ 54.76
11	WPW10436303		Assembly, Timer   (Replaces: W10436303)			Immediately	$ 197.69
12	W10921745		Assembly, Console (white)   (Replaces: W10804419)		Appelez-nous	-
13	WPW10711289		Assembly, Timer Knob (white)   (Replaces: W10711289)			Immediately	$ 8.33
14	W11684611		Switch, Push To Start   (Replaces: W10804590)				$ 74.78
15	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
16	W10804467		Harness, Main		Appelez-nous	-
17	W10112578		Bracket, Harness		Appelez-nous	-
18	W10112603		Seal, Harness		Appelez-nous	-
19	W10316616		Seal, Foam				$ 27.79
20	W11213336		Nut, "u   (Replaces: W10298336)				$ 8.13
21	W11821373		Switch, Rotary   (Replaces: W10804592)		Appelez-nous	-
22	3952439		Buzzer, Mini		Appelez-nous	-
1A	W10849532		Installation Instructions		Appelez-nous	-
1B	W10815797		Wiring Diagram		Appelez-nous	-
