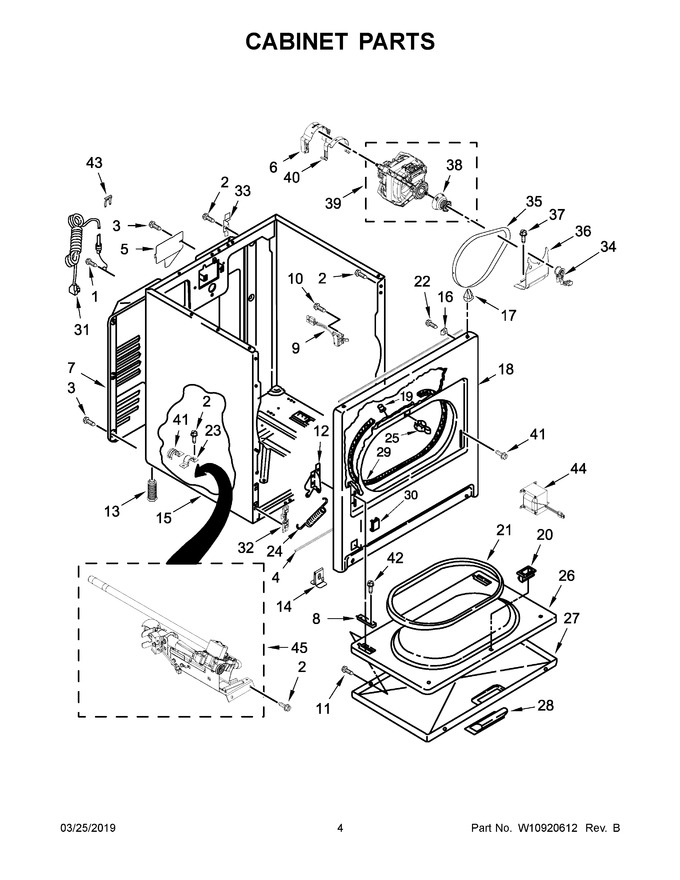

03 - Cabinet Parts


04 - Bulkhead Parts


05 - Burner Assembly Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10850756		Screw   (Replaces: W10773242)				$ 8.20
2	WP3390631		Screw   (Replaces: 3390631)				$ 8.25
3	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
4	W11596046		Seal, Spill Guard   (Replaces: W10841728)			Immediately	$ 54.09
5	W11539855		Cover, Terminal Block   (Replaces: 3396795)			Immediately	$ 629.75
6	WP3404162		Clamp, Motor (with Shield)   (Replaces: 3404162)			Immediately	$ 8.21
7	280043		Panel, Rear   (Replaces: W10571724)				$ 358.37
8	W11252547		Clip, Hinge   (Replaces: 337189)				$ 22.46
9	WPW10237959		Switch, Door   (Replaces: W10237959)			Immediately	$ 55.64
10	WP3395530		Screw   (Replaces: 697773)				$ 8.57
11	WP488627		Screw   (Replaces: 342055)				$ 8.11
12	WP8066056		Hinge, Door (right)   (Replaces: 8066056)			Immediately	$ 103.36
13	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
14	W10575896		Clip, Spring				$ 15.15
15	8533643		Cabinet (white)   (Replaces: 8530603)				$ 419.22
16	WP98234		Clip, Ground   (Replaces: 98234)			Immediately	$ 11.96
17	WP8066092		Lock, Front Top   (Replaces: 8066092)			Immediately	$ 20.48
18	279740		Panel, Front (white)   (Replaces: W10664692)				$ 380.07
19	279220		Clip, Felt Pad   (Replaces: 685203)				$ 23.55
20	WP3389441		Assembly, Door Catch   (Replaces: 3389441)				$ 6.20
21	W10906683		Seal, Door   (Replaces: W10823580)				$ 134.96
22	WP681414		Screw   (Replaces: 343641)			Immediately	$ 8.47
23	341029		Clamp, Pipe		Appelez-nous	-
24	WPW10041960		Spring, Door   (Replaces: W10041960)			Immediately	$ 42.70
25	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.89
26	WP695737		Door, Rear   (Replaces: 695737)				$ 267.29
27	W10861223		Door, Outer (white)   (Replaces: W10714515)				$ 233.28
28	W10861225		Handle, Door (white)   (Replaces: W10714516)			Immediately	$ 54.26
29	W11035878		Assembly, Seal And Bearing   (Replaces: W10803476)			Immediately	$ 78.78
30	W10811916		Plug, Hinge Hole (white)   (Replaces: 8564457)				$ 16.50
31	WPW10476824		Cord, Power   (Replaces: W10476824)				$ 27.24
32	W10854425		Clip, Front Panel   (Replaces: W10775448)			Immediately	$ 16.34
33	WP8066217		Hinge, Top   (Replaces: 8066217)				$ 8.21
34	WP691366		Idler Assembly   (Replaces: 691366)			Immediately	$ 22.47
35	341241		Belt, Drive   (Replaces: W10131364)			Immediately	$ 18.15
36	WP348780		Base, Motor   (Replaces: 348780)			Immediately	$ 127.65
37	3400500		Bolt			Immediately	$ 14.04
38	W11233559		Pulley   (Replaces: W10832956)				$ 119.58
39	W11618508		Assembly, Motor (50 Hz)   (Replaces: W10289660)				$ 365.52
40	WPW10121316		Clamp, Motor Mount   (Replaces: W10121316)			Immediately	$ 26.96
41	342043		Screw		Appelez-nous	-
42	WP308685		Screw   (Replaces: 3357011)			Immediately	$ 7.87
43	W11712577		Clip, Strain Relief   (Replaces: 694415)			Immediately	$ 7.77
44	W10851673		Transformer   (Replaces: W10753690)				$ 417.47
45	W10823508		Burner Assembly (60 Hz) (type 1 And 2)   (Replaces: W10336852)				$ 541.24
12A	WP8066057		Hinge, Door (left)   (Replaces: 8066057)				$ 100.95
NI	W10446855		10a Cord Lock		Appelez-nous	-
NI	WPW10476822		10a Cord Adapter (european)   (Replaces: W10476822)				$ 80.90
NI	WPW10475423		10a Cord Adapter (type B)   (Replaces: W10475423)				$ 21.75
