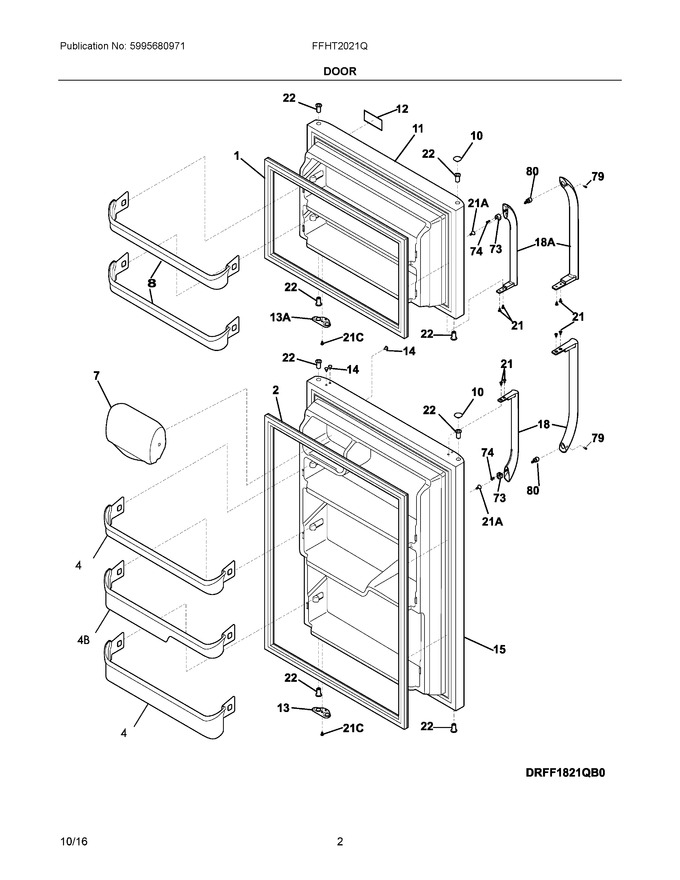

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241872505		Gasket-frzr Door, White, Magnetic   (Replaces: 242193205)				$ 219.04
2	242193213		Gasket-refr Door, White, Magnetic			Immediately	$ 211.36
4	240534901		Rack-door			Immediately	$ 52.25
7	240337712		Door-dairy, W/o Graphics, Clear   (Replaces: 240337703)			Immediately	$ 40.45
8	240534801		Rack-door			Immediately	$ 55.13
10	240381301		Plug-button, White, Hinge Brg Hole, (2)			Immediately	$ 21.06
11	241798401		Door-frzr, White, Complete Assy				$ 516.17
12	242016301		Nameplate, Frigidaire				$ 4.73
13	240312421		Door Stop, White, Ref   (Replaces: 240312403)				$ 16.85
14	240494001		Plug-button, White, Cab Liner Holes			Immediately	$ 20.22
15	241798501		Door-refr, White, Complete Assy			Immediately	$ 603.65
18	5304506469		Handle-door, White, Refr-rh/frzr-lh   (Replaces: 242059504)			Immediately	$ 77.50
21	5304515677		Screw, Truss Hd Quad, #10-16 X .500, Zinc   (Replaces: 240383406)			Immediately	$ 21.37
22	5304507146		Bearing-hinge, Natural Color   (Replaces: 240527101)			Immediately	$ 8.43
73	218396701		Block-handle Mtg, Dovetail		Appelez-nous	-
74	215503203		Screw, Cr Pan Hd, 10-16 X 0.500			Immediately	$ 7.88
13A	240312414		Door Stop, White, Frzr				$ 21.26
18A	5304506469		Handle-door, White, Refr-lh/frzr-rh   (Replaces: 242059501)			Immediately	$ 77.50
21A	240521303		Screw, #10-16 X 1/2			Immediately	$ 33.55
21C	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 15.75
4B	240534701		Rack-door, 4b			Immediately	$ 32.00
