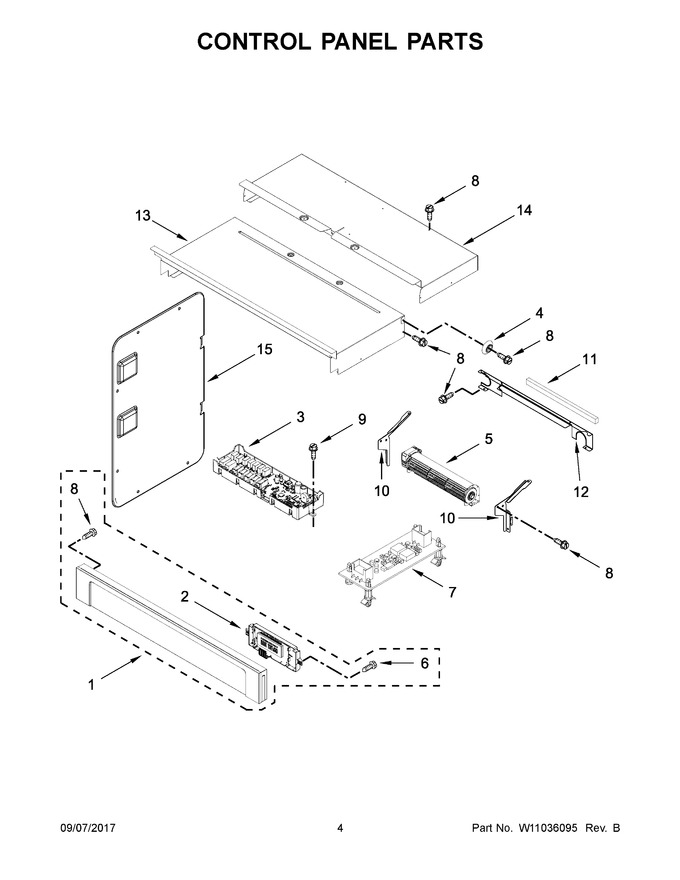

03 - Control Panel Parts


04 - Oven Door Parts


05 - Internal Oven Parts


06 - Cabinet And Stirrer Parts


07 - Internal Microwave Parts


08 - Top Venting Parts


09 - Microwave Door Parts


10 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10914530		Assembly, Control Panel (includes Overlay) (stainless)   (Replaces: W10877221)				$ 642.13
2	WPW10752316		Interface (maxwell), User Board   (Replaces: W10752316)			Immediately	$ 423.85
3	W11097386		Assembly (maxwell), Control Board   (Replaces: W10878987)				$ 527.64
4	W10618105		Spacer, Lateral		Appelez-nous	-
5	W11713858		Blower   (Replaces: W10669823)			Immediately	$ 348.59
6	WP12990527		Screw   (Replaces: 7101P403-60)			Immediately	$ 8.76
7	WPW10412514		Board, Wide Interface   (Replaces: W10412514)				$ 318.64
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
9	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 7.30
10	W10655463		Bracket, Blower (left)		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 8.14
12	W10618126		Chassis, Back Divider		Appelez-nous	-
13	W10318158		Chassis, Cover Top Front 30		Appelez-nous	-
14	W10588732		Chassis, Cover Top Back 30				$ 225.86
15	W10655467		Chassis, Combo Side				$ 83.02
10A	W10655462		Bracket, Blower (right)		Appelez-nous	-
