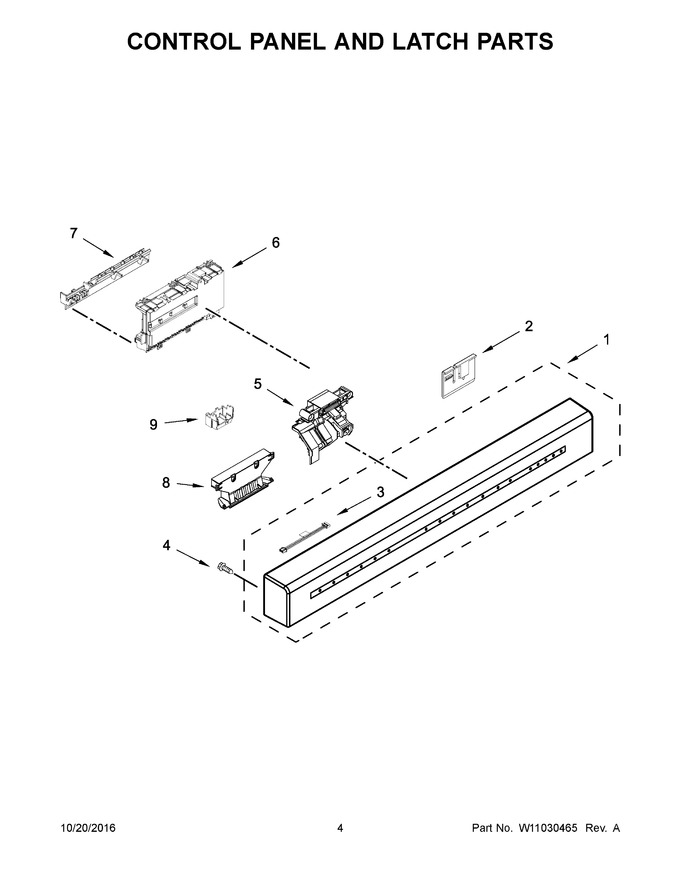

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10891915		Console Assembly (includes Insert) (black)   (Replaces: W10807871)				$ 408.39
2	W11256107		Clip, Control   (Replaces: W10195237)				$ 23.27
3	W10792164		Jumper, 4 Wire				$ 23.71
4	WPW10348408		Screw   (Replaces: W10348408)			Immediately	$ 7.55
5	WPW10653840		Latch Assembly (includes Switch)   (Replaces: W10653840)			Immediately	$ 34.18
6	W10909702		Control, Electronic   (Replaces: W10877721)				$ 314.94
7	WPW10194937		Brace, Connector   (Replaces: W10194937)				$ 30.56
8	W10537379		Handle (black)				$ 27.52
9	W10783730		Box, Connector   (Replaces: W10756253)				$ 31.41
1A	W10891916		Console Assembly (includes Insert) (white)   (Replaces: W10807872)				$ 382.37
1B	W10891917		Console Assembly (includes Insert) (stainless)   (Replaces: W10807870)				$ 381.77

    View Diagram in Separate Window       Print Part List
