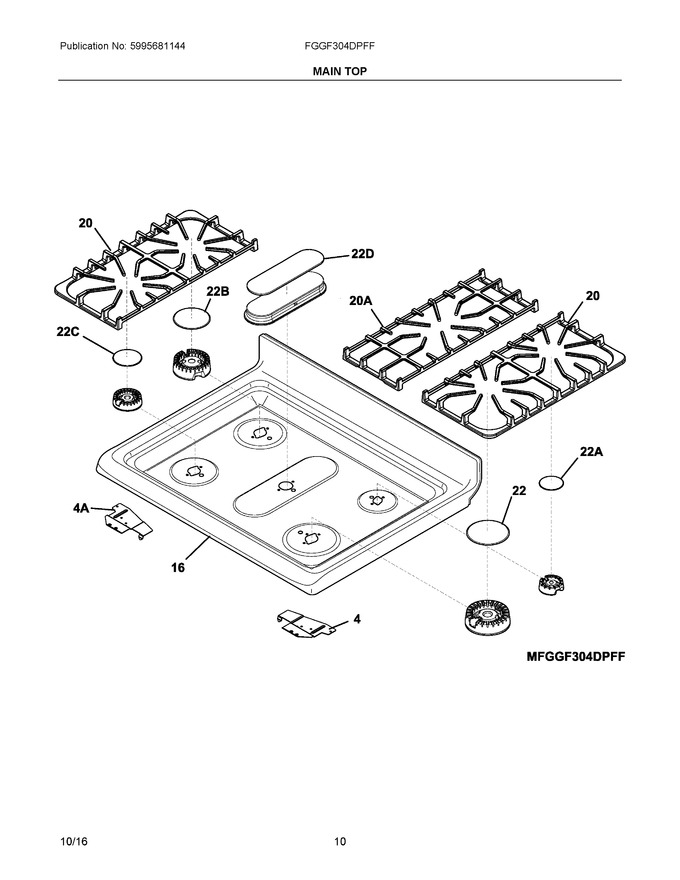

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316605404		Bracket, Maintop, Rh, Lockdown		Appelez-nous	-
16	316610014		Main Top, Black			Immediately	$ 281.14
20	807327101		Grate, Burner, Black, Side, (2)				$ 270.90
22	5304508468		Cap, 17k Burner, Black   (Replaces: 316262104)				$ 54.94
20A	807412601		Grate, Burner, Black, Center				$ 266.96
22A	5304508441		Cap, 5k Burner, Matte, Black   (Replaces: 316261704)			Immediately	$ 38.93
22B	5304508443		Cap, 14k Burner, Matte, Black   (Replaces: 316262004)			Immediately	$ 51.12
22C	5304508442		Cap, 9.5k Burner, Matte, Black   (Replaces: 316261804)			Immediately	$ 40.61
22D	316559604		Cap, 9.5k Burner, Black, Oval				$ 80.33
4A	316605405		Bracket, Maintop, Lh, Lockdown		Appelez-nous	-
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 30.55
