01 - Cover Sheet

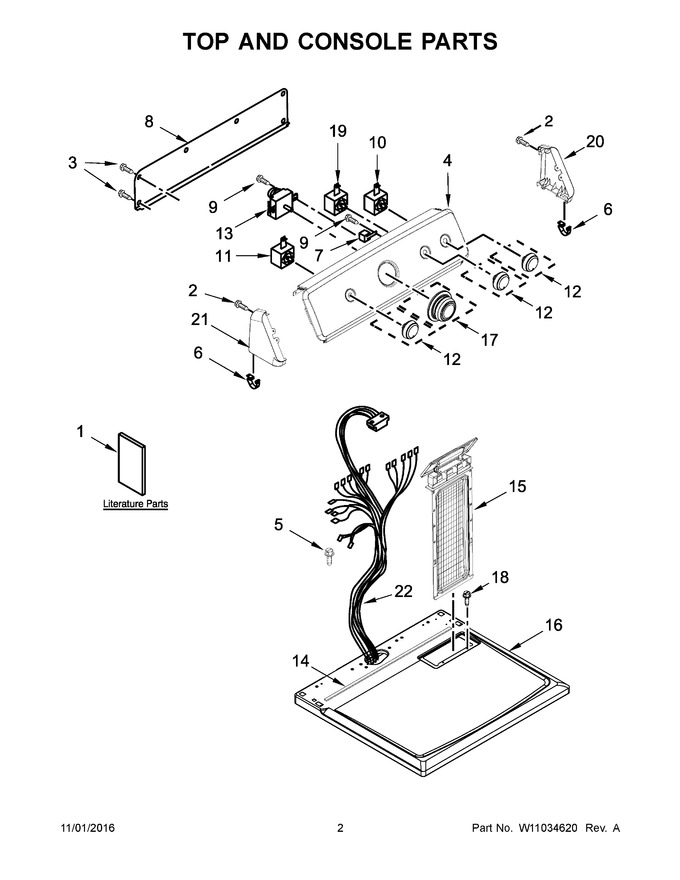

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10849529		Use And Care Guide		Appelez-nous	-
2	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 8.25
3	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
4	W11041458		Assembly, Panel & Bracket (white)   (Replaces: W10804424)		Appelez-nous	-
5	WP681414		Screw   (Replaces: 343641)			Immediately	$ 8.47
6	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
7	3952439		Buzzer, Mini		Appelez-nous	-
8	W10103406		Panel, Rear (console)				$ 135.31
9	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
10	W11041434		Switch, Push To Start   (Replaces: W10804591)				$ 117.30
11	W10168170		Switch, Temperature				$ 206.68
12	W11837893		Assembly, Control Knob (grey)   (Replaces: W10562155)				$ 18.83
13	WPW10185982		Assembly, Timer (60 Hz.)   (Replaces: W10185982)			Immediately	$ 150.34
14	W10316616		Seal, Foam				$ 27.79
15	W11778253		Screen, Lint (white)   (Replaces: W10717210)			Immediately	$ 54.63
16	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 349.25
17	W11837899		Assembly, Timer Knob (grey)   (Replaces: W10558463)			Immediately	$ 18.83
18	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.76
19	W11235848		Switch, Rotary   (Replaces: W10168168)		Appelez-nous	-
20	W10193823		End Cap (right) (white)		Appelez-nous	-
21	W10193826		End Cap (left) (white)		Appelez-nous	-
22	W10804460		Harness, Wire		Appelez-nous	-
1A	W10815797		Wiring Diagram		Appelez-nous	-
1B	W10849532		Installation Instructions		Appelez-nous	-
