Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10741197 Installation Instructions Appelez-nous -
2 W11806565 Arm, Hinge (left Hand)   (Replaces: 8534854) In-Stock Immediately $ 142.39

3 W10850371 Barrier, Vapor   (Replaces: W10844384) In-Stock Immediately $ 32.88

4 W10826179 Screw   (Replaces: W10316572) In-Stock Immediately $ 7.55

5 W11763736 Access Panel (black)   (Replaces: W10852733) In-Stock Immediately $ 42.25

6 W10665708 Panel, Front (includes 4, 10, 11 & 16) (black) Appelez-nous -
7 W10276608 Screw, Set Special Order $ 46.73

8 W10831329 Insulation, Four Layer   (Replaces: W10526105) In-Stock Immediately $ 43.30

9 W10709336 Handle Assembly (black) Appelez-nous -
10 WP8564951 Stud, Mounting   (Replaces: 8564951) In-Stock Immediately $ 19.33

11 W10319007 Light, Pipe Special Order $ 72.00

12 WP302868 Screw (black)   (Replaces: 302868) In-Stock Immediately $ 8.18

13 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 8.40

14 WPW10350242 Bracket, Control   (Replaces: W10350242) Special Order $ 88.32

15 WP3400071 Screw   (Replaces: 3400071) Special Order $ 8.26

16 WPW10214168 Nameplate (black)   (Replaces: W10190724) Special Order $ 85.95

17 WPW10073520 Insulation, Door   (Replaces: W10073520) Special Order $ 96.23

18 W10910629 U-nut   (Replaces: W10853886) Special Order $ 8.64

16A WPW10214168 Nameplate (stainless)   (Replaces: W10214168) Special Order $ 85.95

1A W10810670 Energy Guide Appelez-nous -
1B W10665639 Use & Care Guide Appelez-nous -
1C W10880570 Tech Sheet, English Appelez-nous -
1D W10880571 Tech Sheet, French Appelez-nous -
2A W11806608 Arm, Hinge (right Hand)   (Replaces: 8534853) In-Stock Immediately $ 142.24

6A W10914559 Panel, Front (includes 4, 10, 11 & 16) (stainless)   (Replaces: W10665707) Special Order $ 449.22

9A W10891559 Handle Assembly (stainless)   (Replaces: W10786149) Special Order $ 235.63


    View Diagram in Separate Window     Print Icon   Print Part List

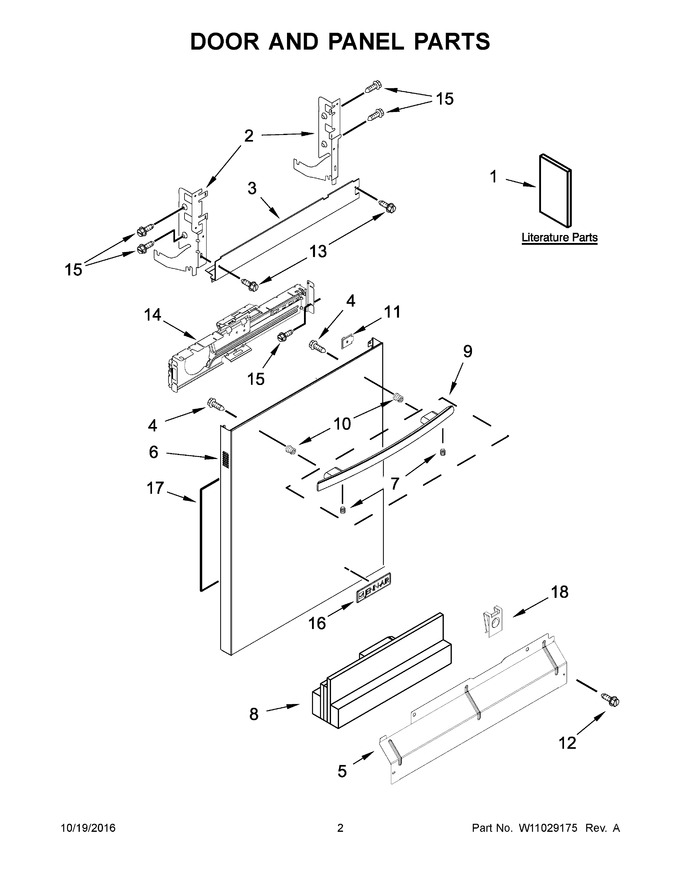

Diagram for JDB9000CWB3
