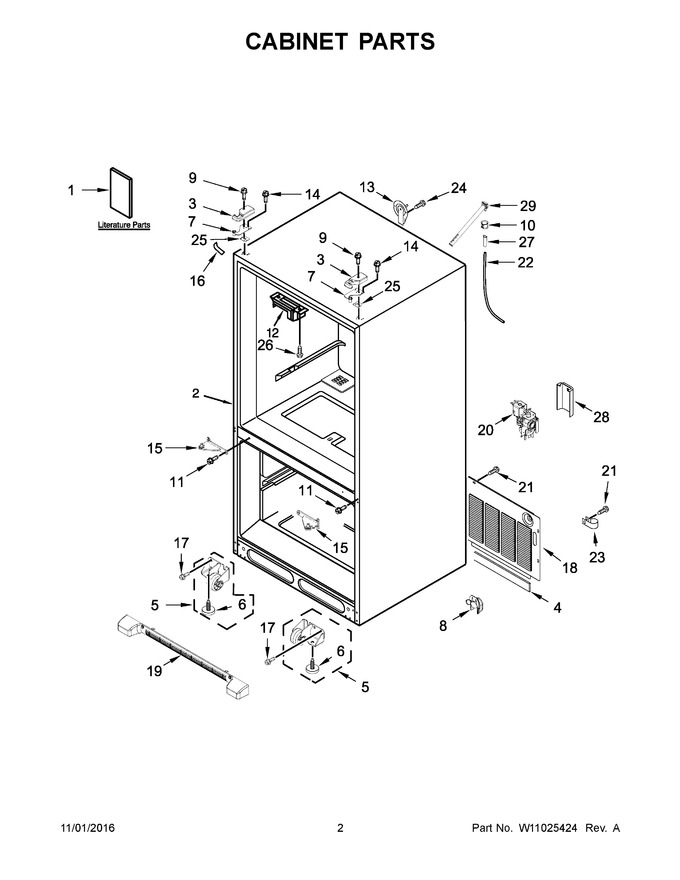

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10621529 | Use And Care Guide |
|
- | |||||
| 2 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 3 | WPW10337648 | Cover, Hinge Left Hand (grey) (Replaces: W10337648) |
|
$ 23.12 | |||||
| 4 | B5759655 | Gasket |
|
$ 13.03 | |||||
| 5 | W11820444 | Roller Assembly (left Hand) (Replaces: W10515763) |
|
Immediately | $ 37.35 | ||||
| 6 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 7 | W11592375 | Hinge, Top (left Hand) (Replaces: 12963204ED) |
|
$ 31.92 | |||||
| 8 | W10485986 | Guide, Waterline |
|
Immediately | $ 12.95 | ||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.55 | ||||
| 10 | WPM0114003 | Clip, Speed (Replaces: M0114003) |
|
$ 11.60 | |||||
| 11 | WP489349 | Screw (Replaces: 12990101) |
|
Immediately | $ 8.43 | ||||
| 12 | WP67003405 | Plate, Pivot (Replaces: 12698403) |
|
Immediately | $ 8.21 | ||||
| 13 | 12726003 | Cover, Water Line |
|
$ 19.19 | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 8.43 | ||||
| 15 | W11747628 | Hinge, Center Left Hand (grey) (Replaces: W10740150) |
|
Immediately | $ 64.18 | ||||
| 16 | WP12587703AP | Cover, Corner (grey) (Replaces: 12587703AP) |
|
$ 8.07 | |||||
| 17 | 67006564 | Screw (Replaces: W10709365) |
|
Immediately | $ 8.15 | ||||
| 18 | W10211854 | Cover, Unit |
|
$ 178.37 | |||||
| 19 | WPW10534155 | Grille, Toe (grey) (Replaces: W10534155) |
|
Immediately | $ 119.56 | ||||
| 20 | WPW10498976 | Valve, Inlet (Replaces: W10498976) |
|
Immediately | $ 126.10 | ||||
| 21 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 22 | W11120581 | Tubing, Plastic (Replaces: B5705333) |
|
$ 124.93 | |||||
| 23 | W11456069 | Clamp, Tube (Replaces: M0108107) |
|
Immediately | $ 22.40 | ||||
| 24 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 25 | 12999501 | Shim, Top Hinge (left Hand) |
|
$ 99.53 | |||||
| 26 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.57 | |||||
| 27 | WPA3223101 | Insert, Tube (Replaces: A3223101) |
|
Immediately | $ 8.21 | ||||
| 28 | W10208592 | Cover, Valve |
|
- | |||||
| 29 | W11176463 | Elbow, Fill Tube (Replaces: 10463203) |
|
Immediately | $ 119.86 | ||||
| 15A | W11747628 | Hinge, Center Right Hand (grey) (Replaces: W10740146) |
|
Immediately | $ 64.18 | ||||
| 1A | W10847568 | Energy Guide |
|
- | |||||
| 1B | W10517966N | Tech Sheet |
|
- | |||||
| 25A | 12999502 | Shim, Top Hinge (right Hand) |
|
$ 100.60 | |||||
| 3A | WPW10191117 | Cover, Hinge Right Hand (grey) (Replaces: 12962302AP) |
|
$ 23.05 | |||||
| 5A | W11820445 | Roller Assembly (right Hand) (Replaces: W10515762) |
|
Immediately | $ 37.35 | ||||
| 7A | W11592374 | Hinge, Top (right Hand) (Replaces: 12963205ED) |
|
Immediately | $ 31.90 |
