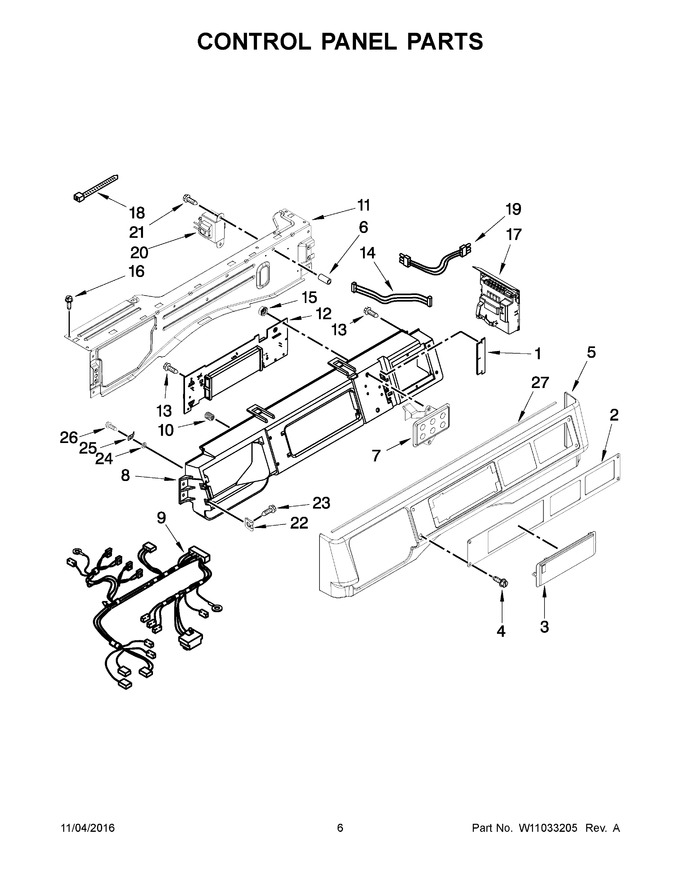

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10187276 | Seal, Console |
|
- | |||||
| 2 | W10801803 | Fascia / Overlay |
|
- | |||||
| 3 | W11637765 | Cover, Display (Replaces: W10267645) |
|
$ 69.59 | |||||
| 4 | WPW10137457 | Screw (Replaces: W10137457) |
|
$ 7.85 | |||||
| 5 | W10779084 | Console, Outer |
|
$ 138.29 | |||||
| 6 | W10018050 | Cap Plug |
|
- | |||||
| 7 | W11126040 | Switch, Membrane & Backer Plate (Replaces: W10779139) |
|
Immediately | $ 144.42 | ||||
| 8 | W11028369 | Console, Inner (Replaces: W10137426) |
|
$ 336.35 | |||||
| 9 | W10664390 | Harness, Wiring (upper Main) |
|
- | |||||
| 10 | WPW10189313 | Insert (Replaces: W10189313) |
|
$ 9.23 | |||||
| 11 | W10846488 | Bracket, Console |
|
$ 92.31 | |||||
| 12 | W11803575 | User Interface (Replaces: W11033882) |
|
$ 934.67 | |||||
| 13 | 489136 | Screw |
|
$ 10.80 | |||||
| 14 | W10155150 | Harness, Test |
|
$ 3.36 | |||||
| 15 | WPW10139046 | Nut (Replaces: W10139046) |
|
$ 9.23 | |||||
| 16 | WP489442 | Screw (Replaces: W10015090) |
|
Immediately | $ 11.49 | ||||
| 17 | W11803575 | Central Control Unit (ccu) (Replaces: W11033881) |
|
$ 934.67 | |||||
| 18 | WPW10339879 | Tie, Cable (Replaces: 4454842) |
|
$ 8.30 | |||||
| 19 | W11700546 | Harness, Wiring (console Uic) (Replaces: W10330606) |
|
$ 19.38 | |||||
| 20 | WPW10131839 | Transformer (Replaces: W10131839) |
|
Immediately | $ 140.23 | ||||
| 21 | 8540329 | Screw |
|
- | |||||
| 22 | WP9781235 | Nut, "u (Replaces: 9781235) |
|
$ 12.56 | |||||
| 23 | WPW10131119 | Screw M4x13 (Replaces: W10131119) |
|
$ 7.30 | |||||
| 24 | W10189075 | Washer, Brass |
|
$ 19.13 | |||||
| 25 | 3373818 | Tab, Grounding |
|
- | |||||
| 26 | WP488234 | Screw (Replaces: 488234) |
|
$ 7.08 | |||||
| 27 | WPW10157932 | Seal, Foam (Replaces: W10157932) |
|
Immediately | $ 8.45 | ||||
| NI | W10689496 | Ccu To Hot Fill Valve (2 Pole) |
|
- | |||||
| NI | W10689490 | Ccu To Coin Drop (4 Pole) |
|
$ 31.99 | |||||
| NI | N/P | The Following Cable Sets: (not Illustrated) |
|
- | |||||
| NI | W10689495 | Ccu To Cold Fill Valve (4 Pole) |
|
- |
