01 - Cover Sheet
02 - Cabinet Parts
03 - Liner Parts
04 - Door Parts
05 - Unit Parts
06 - Shelf Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

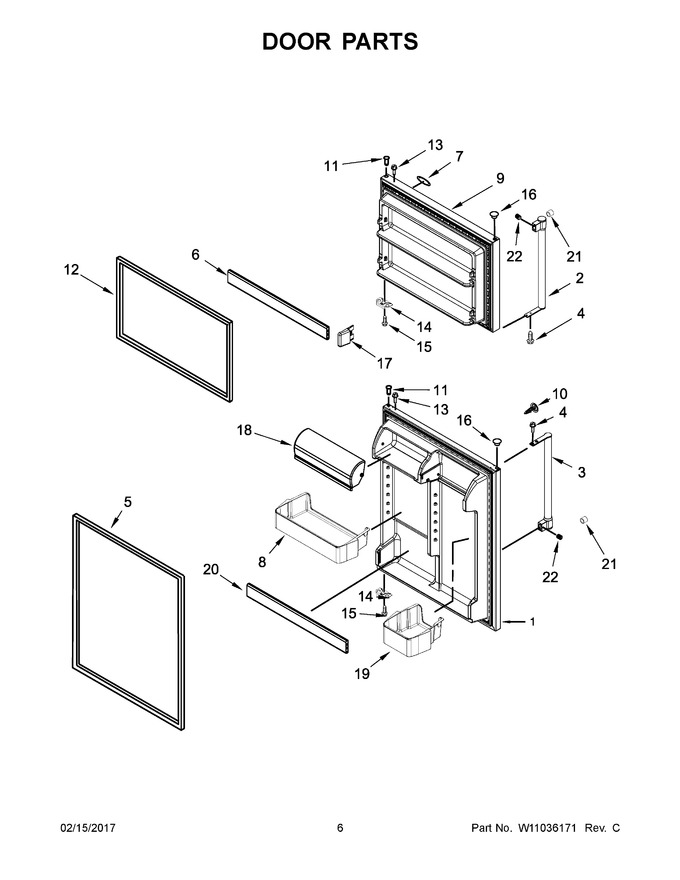

| 1 | LW10646224 | Refrigerator Door (includes Illustration 5) (white) (Replaces: W10646224) |
|
$ 848.03 | |||||
| 2 | W11039791 | Handle, Freezer (white) (Replaces: W10900755) |
|
$ 248.60 | |||||
| 3 | W11039792 | Handle, Refrigerator (white) (Replaces: W10900756) |
|
$ 248.24 | |||||
| 4 | W10861883 | Screw (Replaces: 3400018) |
|
Immediately | $ 4.94 | ||||
| 5 | W10860480 | Door Gasket, Magnetic (white) (Replaces: W10692652) |
|
$ 309.74 | |||||
| 6 | W10592150 | Trim, Door |
|
$ 125.96 | |||||
| 7 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 42.36 | ||||
| 8 | WPW10308868 | Bin, Large Door (Replaces: W10308868) |
|
Immediately | $ 89.09 | ||||
| 9 | LW10646225 | Freezer Door (including Illustration 12) (white) (Replaces: W10646225) |
|
$ 842.50 | |||||
| 10 | W10830984 | Hole Plug (white) (Replaces: W10663736) |
|
$ 8.38 | |||||
| 11 | W11189115 | Thimble Top (Replaces: W10334042) |
|
$ 12.71 | |||||
| 12 | W10741118 | Door Gasket, Magnetic (white) (Replaces: W10692653) |
|
$ 332.03 | |||||
| 13 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 8.37 | |||||
| 14 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 15 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 16 | WP2212648 | Hole Plug, Hinge Sleeve (white) (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 17 | W10838039 | Cap, Trim End (Replaces: W10592153) |
|
Immediately | $ 55.68 | ||||
| 18 | W11675283 | Compartment, Door (Replaces: W10601425) |
|
$ 34.34 | |||||
| 19 | WPW10308869 | Bin, Medium (Replaces: W10308869) |
|
Immediately | $ 77.70 | ||||
| 20 | W11126062 | Trim, Door (Replaces: W10592148) |
|
$ 127.34 | |||||
| 21 | WPW10511911 | Bushing, Handle (Replaces: W10511911) |
|
$ 16.11 | |||||
| 22 | W11366418 | Set Screw (silver) (Replaces: W10010140) |
|
Immediately | $ 18.43 | ||||
| 10A | W10830983 | Hole Plug (black) (Replaces: W10663737) |
|
$ 19.54 | |||||
| 12A | 2177310 | Door Gasket, Magnetic (black) (Replaces: 2214969) |
|
$ 335.31 | |||||
| 16A | WP2212651 | Hole Plug, Hinge Sleeve (black) (Replaces: 2212651) |
|
$ 24.21 | |||||
| 1A | LW10648575 | Refrigerator Door (includes Illustration 5) (black) (Replaces: W10648575) |
|
$ 728.33 | |||||
| 2A | W11299029 | Handle, Freezer (black) (Replaces: W10900753) |
|
- | |||||
| 3A | W10900754 | Handle, Refrigerator (black) |
|
- | |||||
| 5A | 2177311 | Door Gasket, Magnetic (black) (Replaces: 2202882) |
|
$ 330.95 | |||||
| 9A | LW10648577 | Freezer Door (including Illustration 12) (black) (Replaces: W10648577) |
|
$ 842.76 |
