01 - Cover Sheet

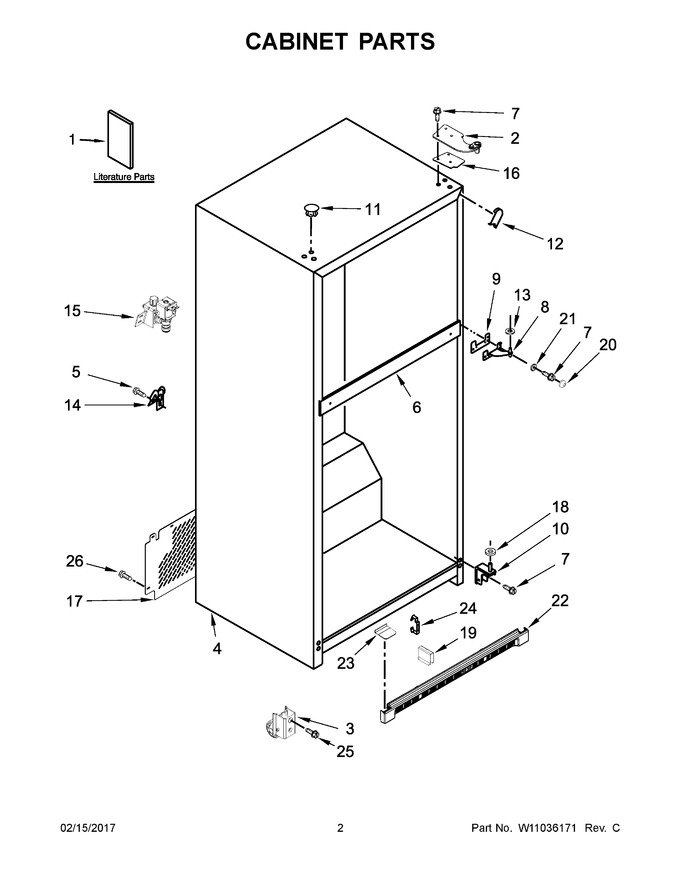

02 - Cabinet Parts
03 - Liner Parts
04 - Door Parts
05 - Unit Parts
06 - Shelf Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10737602 | Tech Sheet |
|
- | |||||
| 2 | WPW10300065 | Assembly, Top Right Hinge (Replaces: W10300065) |
|
$ 12.55 | |||||
| 3 | W10849386 | Assembly, Roller (Replaces: W10725960) |
|
$ 103.28 | |||||
| 4 | N/P | Cabinet (not Serviced) |
|
- | |||||
| 5 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.34 | ||||
| 6 | N/P | Rail, Center (not Serviced) |
|
- | |||||
| 7 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 8 | WP2254618 | Hinge, Center (Replaces: 2254618) |
|
Immediately | $ 82.82 | ||||
| 9 | WP2183852 | Shim, Hinge Center (Replaces: 2183852) |
|
$ 10.06 | |||||
| 10 | WP2254473 | Hinge, Bottom (Replaces: 2254473) |
|
$ 8.35 | |||||
| 11 | WPW10520307 | Hole Plug (grey) (Replaces: W10520307) |
|
Immediately | $ 6.80 | ||||
| 12 | WPW10283959 | Filler, Wrapper (white) (Replaces: W10283959) |
|
$ 7.39 | |||||
| 13 | WP489467 | Washer, Plastic (Replaces: 489341) |
|
Immediately | $ 10.28 | ||||
| 14 | 549193 | Clamp, Power Cord |
|
$ 12.65 | |||||
| 15 | WPW10279909 | Valve, Inlet (Replaces: W10498995) |
|
$ 170.90 | |||||
| 16 | W10883637 | Shim, Top Hinge |
|
$ 14.36 | |||||
| 17 | W11307290 | Cover, Unit (Replaces: W10609390) |
|
- | |||||
| 18 | WP487576 | Washer, Plastic (Replaces: 487576) |
|
Immediately | $ 9.67 | ||||
| 19 | WP2174706 | Clip, Roller (Replaces: 2174706) |
|
$ 10.38 | |||||
| 20 | W10846529 | Dome Cap (white) (Replaces: W10674771) |
|
Immediately | $ 17.84 | ||||
| 21 | W10847959 | Dome Cap, Washer (Replaces: W10674773) |
|
$ 10.14 | |||||
| 22 | W10839426 | Grille (white) (Replaces: W10592141) |
|
$ 74.76 | |||||
| 23 | W10600071 | Cover, Toe Grille (white) |
|
$ 91.81 | |||||
| 24 | 2254385 | Clip, Grille |
|
$ 79.98 | |||||
| 25 | 3400524 | Bolt (Replaces: W10142287) |
|
$ 11.95 | |||||
| 26 | WP488729 | Screw (Replaces: 2262176) |
|
Immediately | $ 7.45 | ||||
| 12A | W11252732 | Filler, Wrapper (black) (Replaces: W10283960) |
|
$ 11.76 | |||||
| 1A | W10889291 | Use & Care Guide |
|
- | |||||
| 1B | W10908059 | Energy Guide |
|
- | |||||
| 20A | W10853677 | Dome Cap (black) (Replaces: W10679135) |
|
$ 17.90 | |||||
| 22A | W10860799 | Grille (black) (Replaces: W10592142) |
|
$ 78.39 | |||||
| 23A | W10468609 | Cover, Toe Grille (black) |
|
$ 91.85 |
