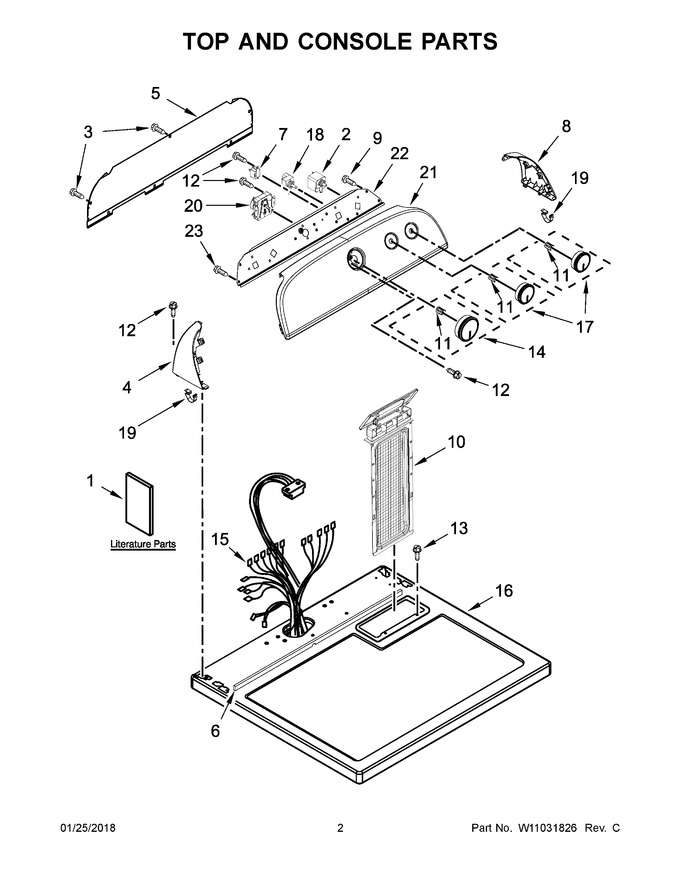

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11049660 | Wiring Diagram |
|
- | |||||
| 2 | W11041434 | Switch, Push To Start (Replaces: W10804591) |
|
$ 117.30 | |||||
| 3 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 4 | W10806902 | End Cap (left) (white) |
|
- | |||||
| 5 | W10556829 | Panel, Rear (console) |
|
$ 285.82 | |||||
| 6 | W10316616 | Seal, Foam |
|
$ 27.79 | |||||
| 7 | 3952439 | Buzzer, Mini |
|
- | |||||
| 8 | W10806901 | End Cap (right) (white) |
|
- | |||||
| 9 | WP3400818 | Screw (Replaces: 3400818) |
|
$ 8.81 | |||||
| 10 | W11778253 | Screen, Lint (white) (Replaces: W10717210) |
|
Immediately | $ 54.63 | ||||
| 11 | WP688805 | Clip, Spring (Replaces: 688805) |
|
Immediately | $ 8.20 | ||||
| 12 | WP90767 | Screw (Replaces: 3348629) |
|
Immediately | $ 8.25 | ||||
| 13 | W11693756 | Screw (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | W11501455 | Assembly, Timer Knob (white/metallic) (Replaces: W10576634) |
|
$ 45.78 | |||||
| 15 | W10804468 | Main, Wiring Harness |
|
- | |||||
| 16 | W11041188 | Top (white) (Replaces: W10821287) |
|
- | |||||
| 17 | W10576636 | Assembly, Control Knob (white/metallic) |
|
- | |||||
| 18 | W10804593 | Switch, Temperature |
|
- | |||||
| 19 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 20 | WPW10185982 | Assembly, Timer (60 Hz.) (Replaces: W10185982) |
|
Immediately | $ 150.34 | ||||
| 21 | W10804422 | Assembly, Console (white) |
|
- | |||||
| 22 | W10556828 | Bracket, Control |
|
- | |||||
| 23 | W10850756 | Screw (Replaces: 8533974) |
|
$ 8.20 | |||||
| 1A | W10849532 | Installation Instructions |
|
- | |||||
| 1B | W10916390 | Wiring Diagram Wod Export Wgii |
|
- |
