SELECT A DIAGRAM

01 - Cover Sheet


02 - Door And Panel Parts


03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)

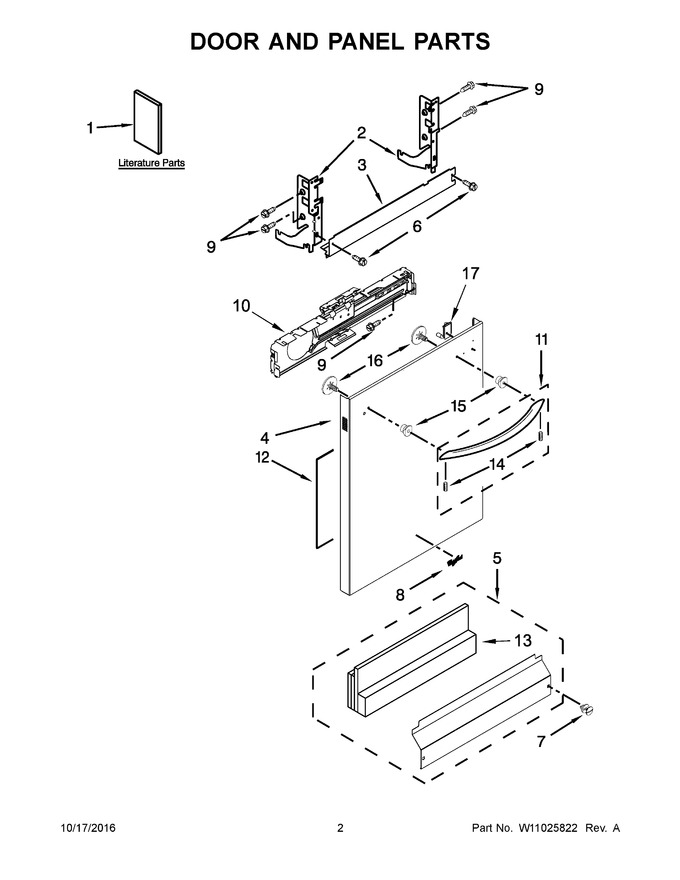

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10806906		Installation Instructions		Appelez-nous	-
2	W11806565		Arm, Hinge (left Hand)   (Replaces: 8534854)			Immediately	$ 142.39
3	W10850371		Barrier, Vapor   (Replaces: W10844384)			Immediately	$ 32.88
4	WPW10644289		Panel Front (includes 8, 15, 16 & 17) (stainless)   (Replaces: W10644289)				$ 384.41
5	WPW10526114		Access Panel (black)   (Replaces: W10526114)			Immediately	$ 149.53
6	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
7	WPW10503548		Fastener (black)   (Replaces: W10503548)			Immediately	$ 30.39
8	WPW10393264		Nameplate (grey)   (Replaces: W10393264)				$ 67.74
9	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
10	W11116870		Bracket, Control   (Replaces: W10641745)				$ 89.95
11	W11028176		Handle Assembly (handle Assembly)   (Replaces: W10786151)				$ 118.35
12	WPW10073520		Insulation, Door   (Replaces: W10073520)				$ 96.23
13	W10831329		Insulation, Four Layer   (Replaces: W10518815)			Immediately	$ 43.30
14	W10907991		Screw, Set   (Replaces: W10693137)				$ 7.55
15	W11157086		Stud, Mounting   (Replaces: W10195726)			Immediately	$ 8.87
16	W10826179		Screw   (Replaces: W10316572)			Immediately	$ 7.55
17	W10500331		Light, Pipe				$ 33.41
1A	W10864208		Energy Guide		Appelez-nous	-
1B	W10785564		Use & Care Guide		Appelez-nous	-
1C	W10880570		Tech Sheet, English		Appelez-nous	-
1D	W10880571		Tech Sheet, French		Appelez-nous	-
2A	W11806608		Arm, Hinge (right Hand)   (Replaces: 8534853)			Immediately	$ 142.24

    View Diagram in Separate Window       Print Part List
