Diagram for 06 - Shelf Parts
06 - Shelf Parts

Diagram for 07 - Unit Parts
07 - Unit Parts

Diagram for 08 - Optional Parts (not Included)
08 - Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 12710606 Ladder, Side Appelez-nous -
2 67006425 Screw (6)   (Replaces: 12990513) In-Stock Immediately $ 7.30

3 67001073 Ladder, Center   (Replaces: 12435807) Special Order $ 56.89

4 W10709795 Screw (2)   (Replaces: 12990515) Special Order $ 13.79

6 10460116V Frame, Deli Appelez-nous -
7 WP67006877 Glass, Crisper   (Replaces: 12204823) In-Stock Immediately $ 209.75

8 WPW10671240 Frame, Crisper   (Replaces: 12530901SP) In-Stock Immediately $ 138.10

9 WP67001308 Pan, Deli   (Replaces: 12656504SP) In-Stock Immediately $ 138.10

10 WP67005864 Slide, Humidity   (Replaces: 12530805SP) In-Stock Immediately $ 8.20

11 WP12227302WD Brace Crisper Frame   (Replaces: 12227302WD) Special Order $ 111.60

12 WPW10231481 Trim, Crisper   (Replaces: W10231481) Special Order $ 117.42

13 W10833528 Pan, Crisper (2)   (Replaces: 12531305) In-Stock Immediately $ 139.95

14 12694606 Shelf, Freezer Appelez-nous -
15 WP12754803 Basket, Freezer (lower)   (Replaces: W10143565) Special Order $ 267.02

16 WP67001053 Glide, Deli (left)   (Replaces: 12656602SP) In-Stock Immediately $ 9.24

16 WP67001054 Glide, Deli (right)   (Replaces: 12656601SP) In-Stock Immediately $ 8.82

17 WPW10671238 Rail, Center   (Replaces: 12530701) In-Stock Immediately $ 118.46

18 W11233072 Screw (4)   (Replaces: 12990302V) In-Stock Immediately $ 14.72

19 10946012 Trim, Rear Full Shelf Appelez-nous -
20 10460116 Frame, Full Shelf Appelez-nous -
21 12204808 Glass Shelf Special Order $ 27.75

22 W10231328 Trim, Front Full Shelf Appelez-nous -
23 10946012V Trim, Rear (2) Deli, Shelf Appelez-nous -
24 12204808V Glass, Deli Shelf (2) Appelez-nous -
25 10459930V Trim, Front Deli (2) Appelez-nous -
26 12990601 Screw Appelez-nous -
27 12693802 Divider-top Basket Appelez-nous -
28 10946012 Trim, Rear Shelf Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

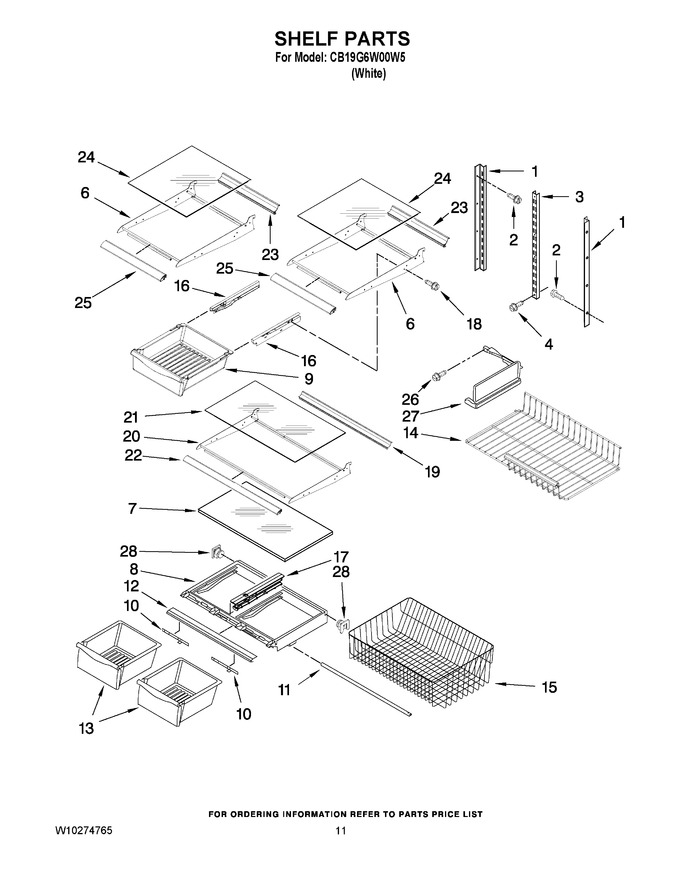

Diagram for CB19G6W00W5
