SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram

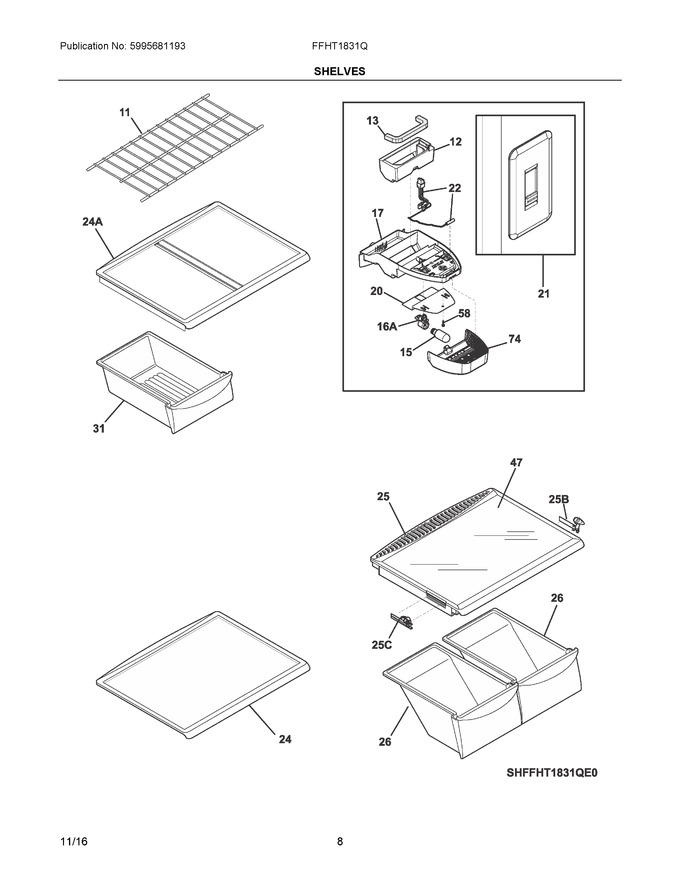

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	240358008		Shelf, Freezer				$ 102.00
12	242248501		Diffuser, Air, Light Box		Appelez-nous	-
13	240568608		Gasket, Air Diffuser		Appelez-nous	-
15	5304517886		Light Bulb   (Replaces: 241552807)			Immediately	$ 81.18
17	242248401		Box, Light/diffuser			Immediately	$ 68.51
20	242248601		Shield, Heat				$ 26.78
21	242249002		Control Assembly, Temperature, W/user Interfce			Immediately	$ 235.46
22	242298701		Harness, Wiring, Light Box, W/ff Thermistor				$ 79.54
24	240358926		Shelf-"spill-safe", Sliding   (Replaces: 240358925)			Immediately	$ 143.52
25	240364787		Cover-crisper Pan			Immediately	$ 134.42
26	240337103		Pan-crisper, Clear, (2), No Graphics			Immediately	$ 164.83
31	240530811		Pan-meat, W/o Graphics, Clear			Immediately	$ 150.86
47	240350608		Insert-pan Cover, 23.82" X 15.50", Glass			Immediately	$ 50.55
58	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 15.75
74	242248701		Lens, Light Cover				$ 48.77
16A	240590403		Socket-light				$ 29.49
24A	240358926		Shelf-"spill-safe", Sliding, W/pan Hanger			Immediately	$ 143.52
25B	241613501		Control-humidity, Rh			Immediately	$ 13.39
25C	241613502		Control-humidity, Lh				$ 53.09
NI	5304498534		Label, Energy Guide		Appelez-nous	-
NIA	241705801		Spacer-shelf				$ 7.88

    View Diagram in Separate Window       Print Part List
