SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)

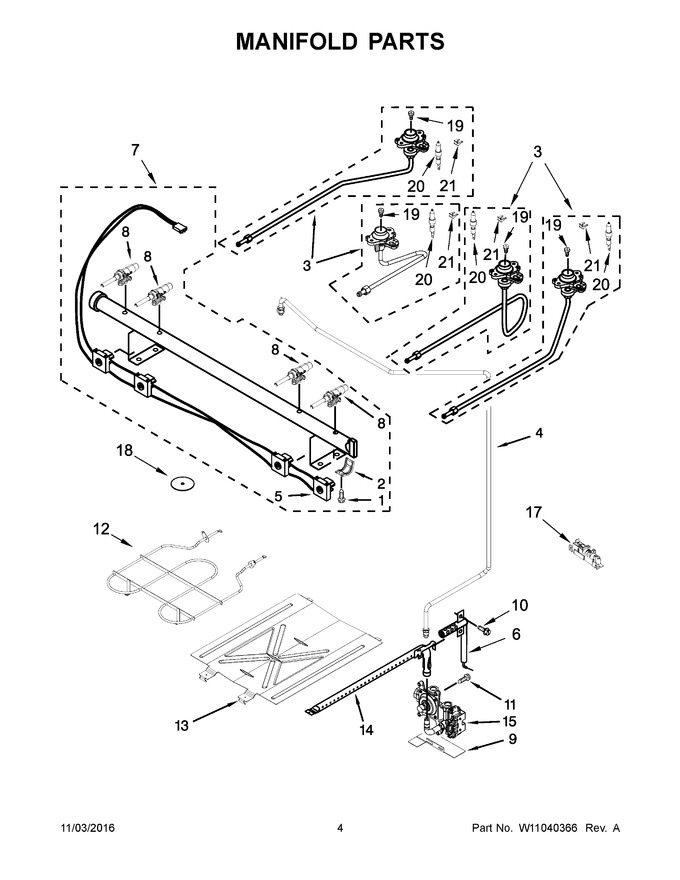

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11666001		Screw   (Replaces: W10246216)				$ 14.28
2	W10949105		Bracket, Saddle Valve   (Replaces: W10295996)				$ 22.75
3	W11035644		Assembly, Orifice Holder (15k) (left Front)   (Replaces: W10827775)				$ 100.13
4	W10804030		Tubing (manifold To Regulator)		Appelez-nous	-
5	W10834787		Harness, Switch				$ 210.88
6	WP9758079		Electrode, Bake   (Replaces: 9758079)			Immediately	$ 41.01
7	W10902172		Assembly, Manifold		Appelez-nous	-
8	W11690141		Valve, Gas (left Front)   (Replaces: W10901555)				$ 71.69
9	W10224921		Bracket, Aegis		Appelez-nous	-
10	W11684507		Screw   (Replaces: 3196385)				$ 14.27
11	W11684512		Screw   (Replaces: 3400080)				$ 14.81
12	W11847084		Element, Broiler   (Replaces: W10714060)				$ 117.89
13	WPW10184491		Spreader, Flame (oven)   (Replaces: W10184491)				$ 253.52
14	WP9758078		Burner, Bake   (Replaces: 9758078)				$ 226.07
15	W10898290		Regulator   (Replaces: W10818355)				$ 393.66
16	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
17	WPW10110491		Module, Spark   (Replaces: W10110488)			Immediately	$ 322.41
18	W10140571		Seal, Switch Shaft				$ 7.70
19	W10849717		Orifice (left Front)			Immediately	$ 93.46
20	W11661929		Electrode, Burner (left Front)   (Replaces: W10669526)			Immediately	$ 50.21
21	W11684564		Clip, Spring (electrode)   (Replaces: W10827923)			Immediately	$ 12.65
19A	W11677633		Orifice (left Rear)   (Replaces: W10849719)				$ 99.15
19B	W10849714		Orifice (right Front & Right Rear)				$ 93.46
20A	W11666003		Electrode, Burner (left Rear)   (Replaces: W10669525)				$ 48.41
20B	W11643126		Electrode, Burner (right Front)   (Replaces: W10669524)			Immediately	$ 38.01
20C	W11661897		Electrode, Burner (right Rear)   (Replaces: W10669523)				$ 48.36
3A	W10827780		Assembly, Orifice Holder (9.5k) (left Rear)				$ 108.01
3B	W11045823		Assembly, Orifice Holder (15k) (right Front)   (Replaces: W10827778)		Appelez-nous	-
3C	W10827779		Assembly, Orifice Holder (5k) (right Rear)				$ 108.01
8A	W10901556		Valve, Gas (left Rear)				$ 287.94
8B	W10901554		Valve, Gas (right Front & Right Rear)				$ 287.94
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10838119		Spuds, Lp Gas				$ 175.74
NI	W11763416		Orifice, Lp Bake   (Replaces: W10838304)				$ 52.11
