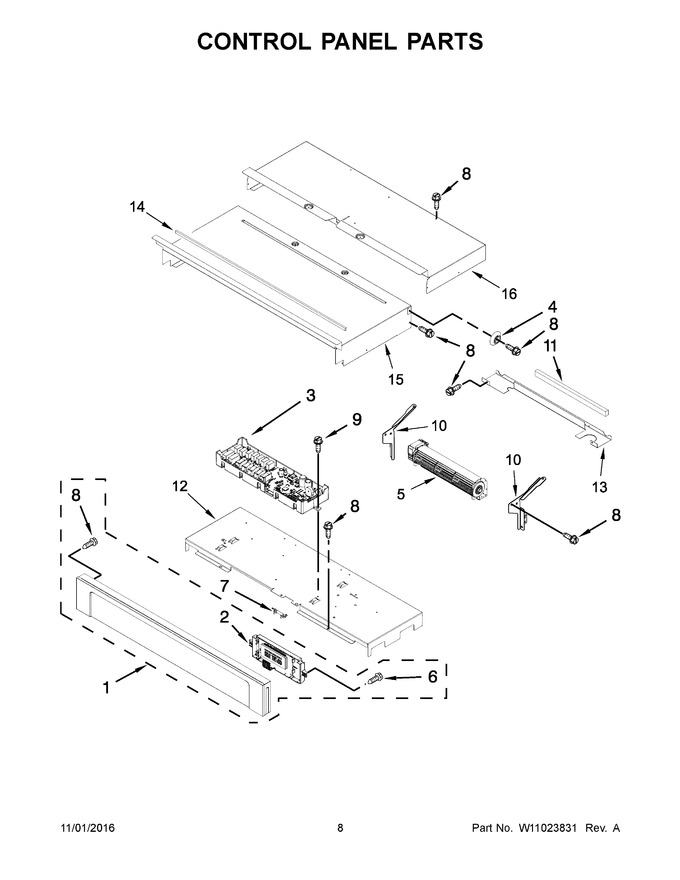

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10859864		Assembly, Control Panel (includes Overlay) (black)   (Replaces: W10830870)		Appelez-nous	-
2	W10803991		Interface (maxwell), User Board   (Replaces: W10752315)			Immediately	$ 420.04
3	W10859300		Assembly, Maxwell Control   (Replaces: W10759207)				$ 461.14
4	W10618105		Spacer, Lateral		Appelez-nous	-
5	W11713858		Blower   (Replaces: W10669823)			Immediately	$ 348.59
6	WP12990527		Screw   (Replaces: 7101P403-60)			Immediately	$ 8.76
7	WPW10545255		Fuse, Thermal   (Replaces: W10545255)			Immediately	$ 27.91
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
9	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 7.30
10	W10655463		Bracket, Blower (left)		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 8.14
12	W10347650		Tray, Electronic				$ 126.08
13	W10655465		Chassis, Back Divider		Appelez-nous	-
14	WPW10657548		Gasket, Rubber   (Replaces: W10657548)				$ 89.66
15	W10318192		Chassis, Cover Top Front 30				$ 138.81
16	W10904156		Chassis, Cover Top Back 30   (Replaces: W10694465)		Appelez-nous	-
10A	W10655462		Bracket, Blower (right)		Appelez-nous	-
1A	W10859873		Assembly, Control Panel (includes Overlay) (white)   (Replaces: W10830869)		Appelez-nous	-
1B	W10859874		Assembly, Control Panel (includes Overlay) (stainless)   (Replaces: W10830871)				$ 570.27
