01 - Cover Sheet
02 - Oven Parts

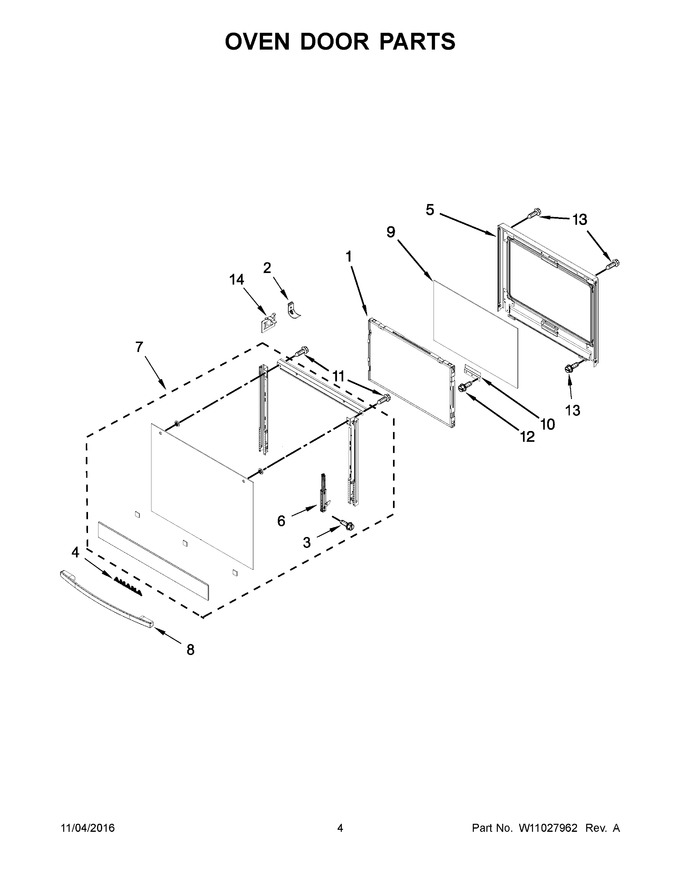

03 - Oven Door Parts
04 - Internal Oven Parts
05 - Control Panel Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10347597 | Assembly, Window Pack (Replaces: W10347597) |
|
$ 294.07 | |||||
| 2 | W10812024 | Spring, Door Glass Fixation (Replaces: W10284285) |
|
$ 165.76 | |||||
| 3 | WP3196183 | Screw (Replaces: 3196183) |
|
Immediately | $ 8.18 | ||||
| 4 | W11788675 | Badge (black) (Replaces: W10846751) |
|
$ 31.10 | |||||
| 5 | WPW10320793 | Assembly, Liner (Replaces: W10320793) |
|
$ 337.34 | |||||
| 6 | W10639070 | Hinge, Door |
|
$ 68.31 | |||||
| 7 | W11318263 | Assembly, Door Glass (black) (Replaces: W10832255) |
|
$ 453.23 | |||||
| 8 | W10825488 | Handle, Door (black) |
|
- | |||||
| 9 | W10829001 | Glass, Inner (Replaces: W10678525) |
|
$ 208.55 | |||||
| 10 | W10853628 | Bracket, Glass (Replaces: W10284297) |
|
$ 163.86 | |||||
| 11 | W11396735 | Screw (Replaces: W10163951) |
|
$ 14.75 | |||||
| 12 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 13 | WP98008545 | Screw (black) (Replaces: 7101P633-60) |
|
$ 18.60 | |||||
| 14 | W11025615 | Clip, Spring Metal (Replaces: W10653954) |
|
Immediately | $ 176.14 | ||||
| 4A | W10849465 | Badge (white) |
|
Immediately | $ 82.81 | ||||
| 4B | W11240541 | Badge (stainless) (Replaces: W10846752) |
|
Immediately | $ 77.95 | ||||
| 7A | W10832256 | Assembly, Door Glass (white) |
|
$ 435.69 | |||||
| 7B | W10832254 | Assembly, Door Glass (stainless) |
|
$ 404.83 | |||||
| 8A | W10825487 | Handle, Door (white) |
|
- | |||||
| 8B | W10825489 | Handle, Door (stainless) |
|
- |
