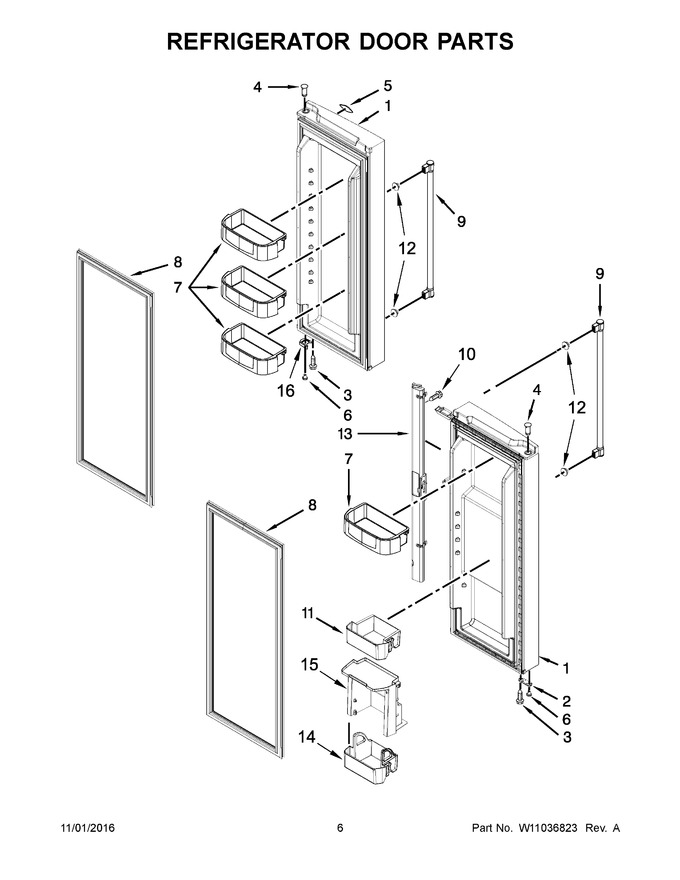

04 - Refrigerator Door Parts
05 - Freezer Door Parts
06 - Unit Parts
07 - Shelf Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10721544 | Door, Refrigerator (includes Illustration 8) (left Hand (white)) (Replaces: W10721544) |
|
$ 919.70 | |||||
| 2 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 3 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.43 | ||||
| 4 | W11189115 | Thimble, Top (Replaces: W10334042) |
|
Immediately | $ 11.44 | ||||
| 5 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 38.12 | ||||
| 6 | WPW10470155 | Closure, Door (Replaces: W10470155) |
|
Immediately | $ 6.80 | ||||
| 7 | WPW10308869 | Bin, Medium (Replaces: W10331764) |
|
Immediately | $ 69.93 | ||||
| 8 | W10460612 | Gasket, Door (beige) (Replaces: W10353189) |
|
Immediately | $ 281.09 | ||||
| 9 | W10918556 | Assembly, Handle (white) (Replaces: W10891380) |
|
$ 170.59 | |||||
| 10 | W10854958 | Screw (Replaces: 12990302) |
|
$ 7.11 | |||||
| 11 | WPW10372916 | Bin, Shallow (Replaces: W10372916) |
|
$ 198.86 | |||||
| 12 | WPW10170540 | Screw (Replaces: W10170540) |
|
Immediately | $ 8.69 | ||||
| 13 | WPW10624451 | Assembly, Mullion (white) (Replaces: W10624451) |
|
Immediately | $ 119.34 | ||||
| 14 | W10462298 | Bin, Low Profile |
|
$ 119.08 | |||||
| 15 | WPW10317224 | Compartment, Utility (Replaces: W10317224) |
|
$ 93.42 | |||||
| 16 | WPW10397055 | Bracket, Door Stop (Replaces: W10397055) |
|
Immediately | $ 33.25 | ||||
| 13A | W11692845 | Assembly, Mullion (black) (Replaces: W10624448) |
|
$ 217.49 | |||||
| 1A | LW10721540 | Door, Refrigerator (includes Illustration 8) (right Hand (white)) (Replaces: W10721540) |
|
$ 915.34 | |||||
| 1B | LW10721546 | Door, Refrigerator (includes Illustration 8) (left Hand (black)) (Replaces: W10721546) |
|
$ 787.40 | |||||
| 1C | LW10721541 | Door, Refrigerator (includes Illustration 8) (right Hand (black)) (Replaces: W10721541) |
|
$ 787.40 | |||||
| 8A | W10460610 | Gasket, Door (black) (Replaces: W10413465) |
|
$ 251.58 | |||||
| 9A | W10918557 | Assembly, Handle (black) (Replaces: W10891379) |
|
$ 170.59 |
