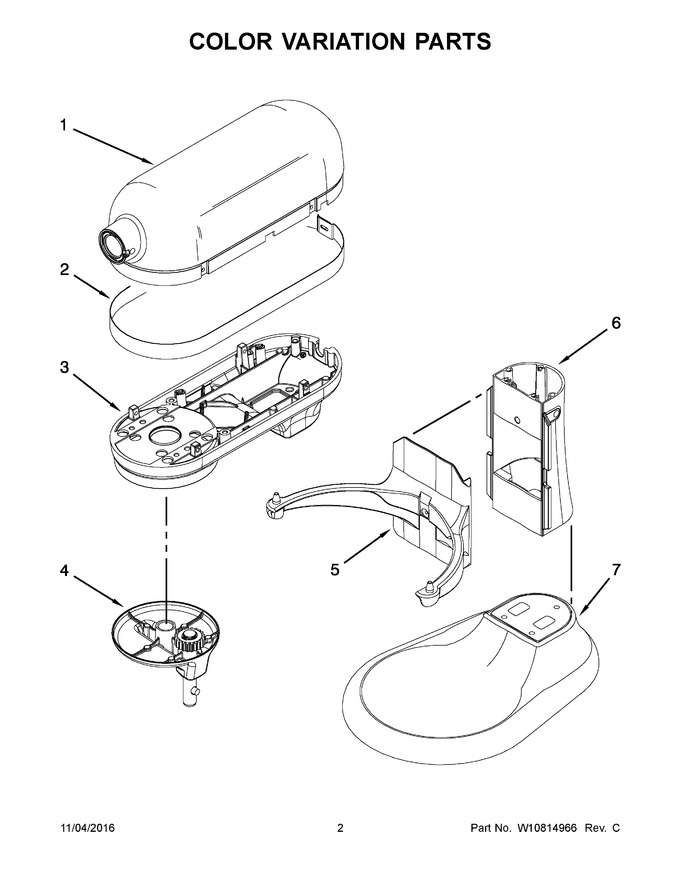

02 - Color Variation Parts
03 - Case, Gearing And Planetary Unit Parts
04 - Base And Pedestal Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9705300 | Motor Housing (empire Red) |
|
$ 88.20 | |||||
| 2 | W10712082 | Trim Band (dark Platinum) |
|
- | |||||
| 3 | W10419417 | Lower Gearcase (empire Red) |
|
$ 78.09 | |||||
| 4 | WPW10419426 | Planetary (empire Red) (Replaces: W10419426) |
|
$ 66.18 | |||||
| 5 | 9705360 | Bowl Support And Pins (empire Red) |
|
- | |||||
| 6 | W10467889 | Column And Pins (empire Red) |
|
- | |||||
| 7 | 9705348 | Base & Foot Assembly (empire Red) |
|
- | |||||
| 1A | WPW10403016 | Motor Housing (candy Apple) (Replaces: W10403016) |
|
$ 65.02 | |||||
| 1B | W10454050 | Motor Housing (frosted Pearl) |
|
- | |||||
| 1C | W10454049 | Motor Housing (silver Metallic) |
|
- | |||||
| 1D | 9703311 | Motor Housing (white) |
|
$ 88.20 | |||||
| 3A | W10869468 | Lower Gearcase (candy Apple) |
|
- | |||||
| 3B | W10869470 | Lower Gearcase (frosted Pearl) |
|
- | |||||
| 3C | W10419423 | Lower Gearcase (silver Metallic) |
|
- | |||||
| 3D | W10308348 | Lower Gearcase (white) |
|
- | |||||
| 4A | WPW10403008 | Planetary (candy Apple) (Replaces: W10403008) |
|
$ 64.97 | |||||
| 4B | W10520287 | Planetary (frosted Pearl) |
|
$ 77.73 | |||||
| 4C | W10419432 | Planetary (silver Metallic) |
|
- | |||||
| 4D | WPW10420628 | Planetary (white) (Replaces: W10420628) |
|
$ 64.21 | |||||
| 5A | WPW10402998 | Bowl Support And Pins (candy Apple) (Replaces: W10402998) |
|
$ 98.26 | |||||
| 5B | W10448659 | Bowl Support And Pins (frosted Pearl) |
|
- | |||||
| 5C | W10448648 | Bowl Support And Pins (silver Metallic) |
|
- | |||||
| 5D | 9703674 | Bowl Support And Pins (white) |
|
$ 74.91 | |||||
| 6A | WPW10450997 | Column And Pins (candy Apple) (Replaces: W10450997) |
|
$ 103.25 | |||||
| 6B | WPW10444018 | Column And Pins (frosted Pearl) (Replaces: W10444018) |
|
$ 105.84 | |||||
| 6C | W10467890 | Column And Pins (silver Metallic) |
|
- | |||||
| 6D | W10467892 | Column And Pins (white) |
|
- | |||||
| 7A | WPW10402986 | Base & Foot Assembly (candy Apple) (Replaces: W10402986) |
|
$ 111.33 | |||||
| 7B | W10448638 | Base & Foot Assembly (frosted Pearl) |
|
- | |||||
| 7C | W10448633 | Base & Foot Assembly (silver Metallic) |
|
- | |||||
| 7D | 9703690 | Base & Foot Assembly (white) |
|
- |
