Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 67001138 Door, Refrigerator (white) Special Order $ 514.71

2 67006682 Screw, Handle (white) Appelez-nous -
3 WP67003637 Door, Dairy   (Replaces: 67003637) In-Stock Immediately $ 82.67

4 WP67001279 Tray, Dairy   (Replaces: 67001279) In-Stock Immediately $ 88.01

5 67001141 Bucket, Small (2) In-Stock Immediately $ 78.91

7 10712401 Plug, Button (2) (white) Special Order $ 7.79

8 WPW10443309 Gasket, Door (white)   (Replaces: W10164030) In-Stock Immediately $ 365.24

9 67003129 Handle, Door (white) Special Order $ 79.41

10 WP98165 Screw   (Replaces: 67006287) Special Order $ 8.57

11 12968202W Stop, Door (white)   (Replaces: 67003779) Special Order $ 69.29

12 67005427 Nameplate (white) Appelez-nous -
13 67001139 Retainer, Ref Door In-Stock Immediately $ 104.79

14 WP67004977 Bushing (4) (white)   (Replaces: 67004977) Special Order $ 8.20

15 67005131 Trim, Handle-top (white) Special Order $ 5.83

16 12248201 Screw Special Order $ 5.48

17 67005137 White Special Order $ 16.90


    View Diagram in Separate Window     Print Icon   Print Part List

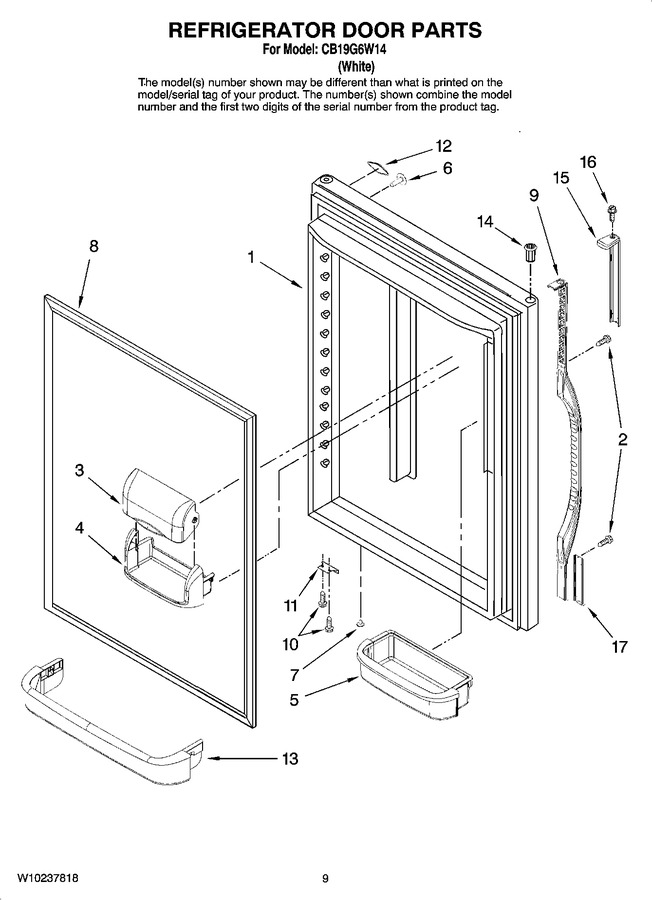

Diagram for CB19G6W14
