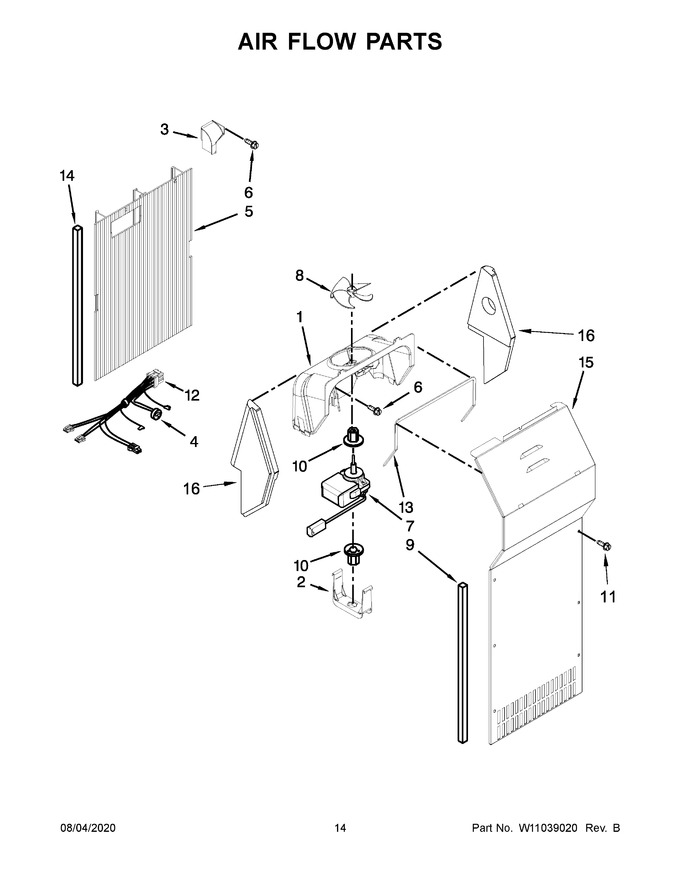

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11254898 | Scroll, Fan (Replaces: 2182119) |
|
Immediately | $ 339.43 | ||||
| 2 | W11671527 | Retainer, Fan Motor (Replaces: W10260421) |
|
$ 24.00 | |||||
| 3 | W10803597 | Scoop, Air (Replaces: 2161229) |
|
$ 86.12 | |||||
| 4 | WPW10225581 | Bi-metal, Defrost (Replaces: W10225581) |
|
Immediately | $ 50.77 | ||||
| 5 | W11503180 | Duct, Freezer Air (Replaces: 2203592) |
|
$ 67.62 | |||||
| 6 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 7 | 4389144 | Motor, Evaporator Fan (Replaces: W10312647) |
|
Immediately | $ 78.61 | ||||
| 8 | WP2169142 | Blade, Fan (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 9 | WP2304241 | Gasket (Replaces: 2304241) |
|
Immediately | $ 86.94 | ||||
| 10 | WP2176759 | Grommet, Motor (Replaces: 2176759) |
|
$ 8.16 | |||||
| 11 | WP693995 | Screw (Replaces: W10142292) |
|
Immediately | $ 7.55 | ||||
| 12 | W11084324 | Harness, Evaporator Fan (includes Bi-metal Defrost) (Replaces: W10297482) |
|
$ 111.27 | |||||
| 13 | WP2304241 | Gasket (Replaces: 2304241) |
|
Immediately | $ 86.94 | ||||
| 14 | 4388500 | Gasket, Air Duct (Replaces: 2203875) |
|
$ 94.91 | |||||
| 15 | W11429207 | Cover, Evaporator (Replaces: W10463012) |
|
$ 60.90 | |||||
| 16 | 4388358 | Support, Fan Scroll (right Hand) (Replaces: 2203595) |
|
$ 32.72 | |||||
| 16A | 4388358 | Support, Fan Scroll (left Hand) (Replaces: 2203596) |
|
$ 32.72 |
