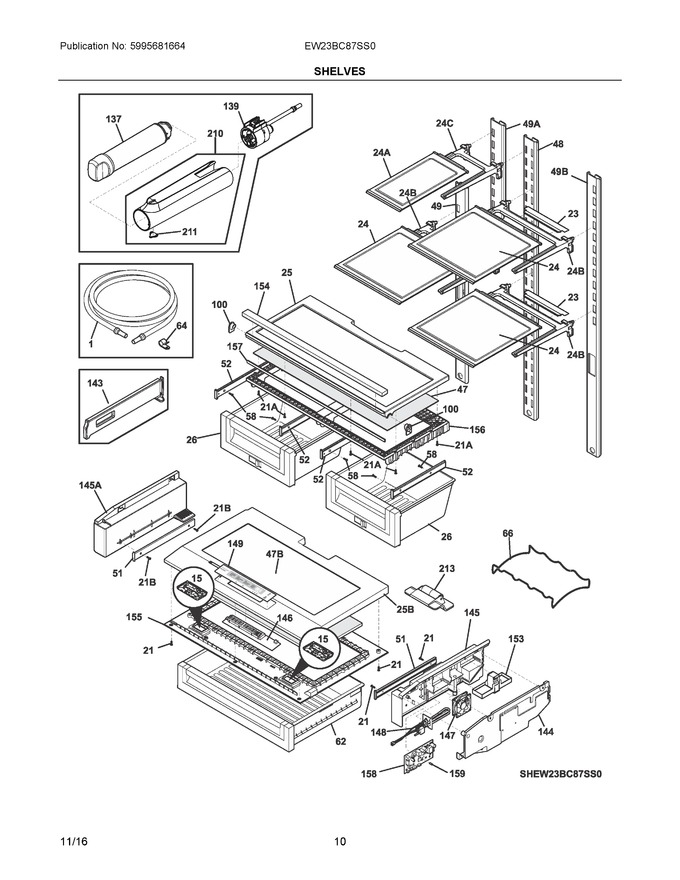

05 - Shelves


06 - Cooling System


07 - Controls & Ice Dispenser


08 - Ice Container


09 - Ice Maker


10 - Wiring Diagram


11 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242220119		Tube-water, 5/16-97.5", Natural, Filter Base To, Secondary Valve			Immediately	$ 33.86
15	5304508199		Light Assembly, Led				$ 43.82
21	241953902		Screw, Quad Hilo, #8-18 X 0.380			Immediately	$ 19.01
23	5304508193		Deflector, Air, Shelf				$ 12.60
24	5304508179		Shelf, Lift-off, 1/2 Width				$ 188.21
25	241802205		Frame-crisper Cover, Upper				$ 132.30
26	241772808		Pan-crisper				$ 299.13
47	241768802		Glass-crisper Frame				$ 85.95
48	242122101		Channel-shelf Mtg, Center				$ 88.99
49	5304508196		Channel, Shelf Mtg., Lh Side		Appelez-nous	-
51	241816101		Slide-deli				$ 169.31
52	241769002		Slide-crisper Cover				$ 133.09
58	241941202		Screw, 8-18 X 3/8				$ 16.85
62	241827206		Pan-deli				$ 276.10
64	240396801		Clamp, Tube/wiring, Nylon, Black/natural				$ 21.26
66	241748901		Rack-wine				$ 86.63
100	241768601		Support-crspr Cover				$ 21.26
137	EWF02C		Filter Assembly, Puresource U-ii, W/cap   (Replaces: 807946704)			Immediately	$ 75.59
139	5304522623		Manifold, Water Filter, 93.5", W/brown Tube, Filter Base To, Primary Valve   (Replaces: 807931801)			Immediately	$ 71.70
143	242151004		Divider-deli Pan		Appelez-nous	-
144	241803901		Cover-deli Air Control		Appelez-nous	-
145	241803803		Housing-deli Air Control				$ 126.21
146	241958405		Control-electronic, Ptd   (Replaces: 241958403)				$ 159.09
147	241825704		Fan Assembly, Motor, With Blade				$ 321.75
148	241782001		Heater-ptd, 115 V				$ 216.56
149	242025901		Overlay, Electronic, Membrane Switch				$ 177.19
153	241775301		Motor-damper				$ 227.24
154	241879902		Trim-crisper Cover				$ 43.82
155	241803403		Frame-deli Cover, Lower				$ 164.59
156	241872006		Frame-crisper Cover, Lower				$ 133.09
157	241872201		Beam-crisper Cover				$ 59.83
158	241955004		Board-main Power, Ptd				$ 272.48
159	241815401		Cap, Pcba Hold Down		Appelez-nous	-
210	5303918723		Housing, Water Filter, W/plug & Pad			Immediately	$ 29.14
211	807932201		Plug, Filter Housing		Appelez-nous	-
213	242010901		Roller Assy, Deli Pan				$ 55.13
145A	5304508170		Support, Rail, Lh				$ 107.02
21A	5304453707		Screw, Quad Hilo, #8-18 X 0.50, (2)   (Replaces: 241953901)			Immediately	$ 17.69
21B	241953902		Screw, Quad Hilo, #8-18 X 0.25   (Replaces: 241953907)			Immediately	$ 19.01
24A	5304508177		Shelf, Lift-off, 1/4 Width				$ 162.23
24B	5304508174		Bracket Assembly, Lift-off Shelf, 1/2 Width				$ 270.48
24C	5304508175		Bracket Assembly, Lift-off Shelf, 1/4 Width				$ 204.84
25B	5303918487		Cover-pan, Ptd, Cover Kit				$ 205.75
47B	241967401		Glass, 2 Pane Insulatd				$ 250.43
49A	5304531311		Channel-shelf Mtg, Center, Icemaker Shelf   (Replaces: 242122001)		Appelez-nous	-
49B	242122302		Channel-shelf Mtg, Side, Rh				$ 81.11
NI	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 15.75
NI	807332493		Label, Energy Guide		Appelez-nous	-
NIA	241835402		Harness-wiring, Mixing Valve				$ 25.99
NIA	240451503		Screw, Ind Hex Wshr Hd, 8-32 X 0.375, Trilobe				$ 4.21
NIA	5304521780		Harness-power Ptd   (Replaces: 241822602)				$ 26.12
NIA	242200102		Clip, Tubing, 90 Deg Elbow				$ 11.81
NIA	A13402902		Bypass Assembly, No Filter, Optional Part   (Replaces: 807946702)			Immediately	$ 115.98
NIA	241695904		Screw				$ 16.01
NIA	241936201		Damper-rubber, Ptd Fan		Appelez-nous	-
NIA	241500303		Screw, Hex Washer Head, 8-18ab X 1/2			Immediately	$ 5.06
NIA	242130101		Clip, Retainer, Ptd Board		Appelez-nous	-
NIB	241862501		Harness-wiring, Ptd Main W/led				$ 52.76
NIB	242039702		Screw, Shoulder, #10-16, (2)				$ 4.73
NIB	5304508198		Harness, Wiring, Ptd Ui & Led, W/thermistor				$ 140.96
