01 - Cover Sheet

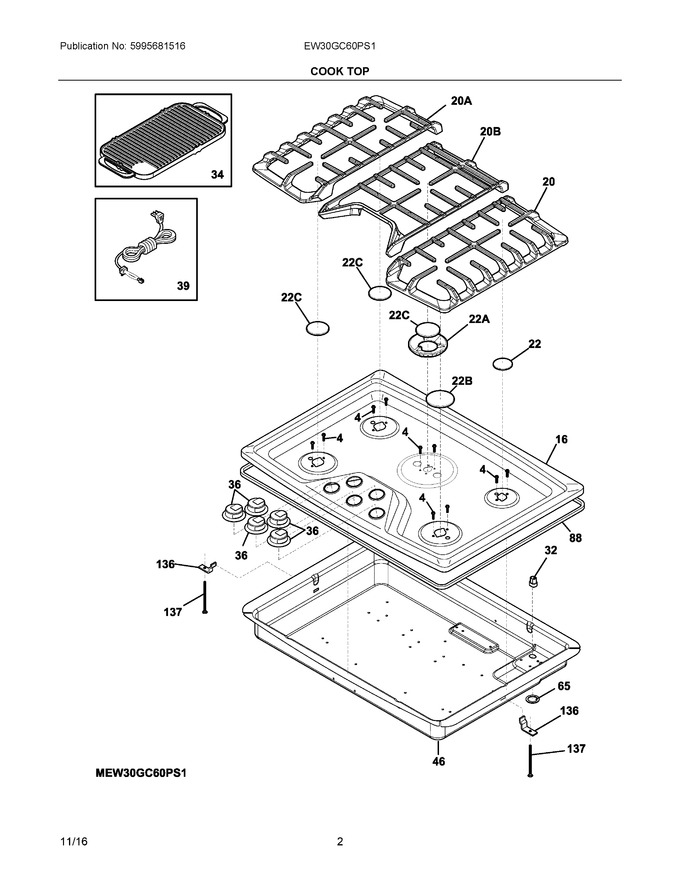

02 - Cook Top


03 - Burner


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316240600		Screw, Hex Wash, 6-32 X .485   (Replaces: 5304472956)			Immediately	$ 13.48
16	808957802		Maintop, Stainless, W/graphics				$ 296.89
20	5304495902		Grate, Top Burner, Black, Rh				$ 259.09
22	5304508441		Cap, 5k Burner, Matte, Black			Immediately	$ 38.93
32	5304513507		Strain Relief   (Replaces: 3201437)				$ 10.11
34	318251615		Griddle, 30" Cooktop Optional Access0ry				$ 256.58
36	318569904		Knob, Top Valve, Stainless, (5)			Immediately	$ 100.80
39	305574902		Power Cord, Electrical, Supply				$ 77.18
46	305385916		Box, Burner		Appelez-nous	-
65	5304506478		Seal, Rubber				$ 12.60
88	808992701		Gasket, Cooktop		Appelez-nous	-
136	318264301		Support, Box, (2)				$ 47.72
137	305452400		Screw, Lock Bracket, (2)			Immediately	$ 13.55
20A	5304495903		Grate, Top Burner, Black, Lh				$ 250.43
20B	5304495904		Grate, Top Burner, Black, Center				$ 260.66
22A	5304519953		Cap, Burner, Black, G5   (Replaces: 139029203)				$ 183.52
22B	5304508443		Cap, 14k Burner, Matte, Black			Immediately	$ 51.12
22C	5304508442		Cap, 9.5k Burner, Matte, Black			Immediately	$ 40.61
NI	318163602		Cleaner, Stainless Steel				$ 26.51
NIA	305424100		Tape, Aluminum		Appelez-nous	-
NIA	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-
