01 - Cover Sheet

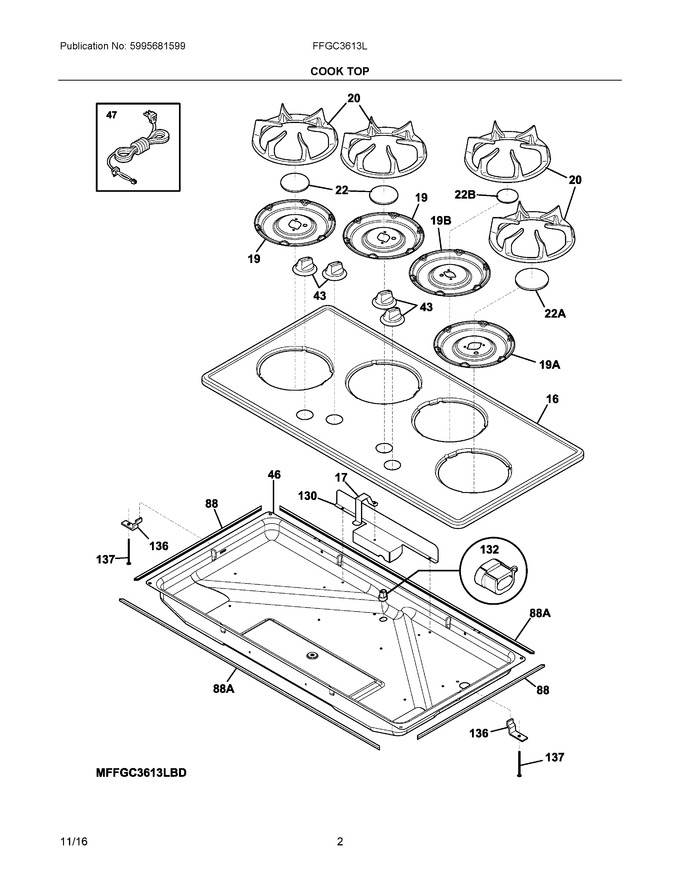

02 - Cook Top


03 - Burner


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	305592801		Main Top, Black		Appelez-nous	-
17	318406302		Bracket, Retainer		Appelez-nous	-
19	318168035		Pan, Burner, Medium, Black		Appelez-nous	-
20	318120007		Grate, (4)		Appelez-nous	-
22	5304508442		Cap, 9.5k Burner, Matte, Black			Immediately	$ 40.61
43	316544042		Knob, Control, Black		Appelez-nous	-
46	305385921		Box, Burner		Appelez-nous	-
47	305574902		Power Cord, Electrical, Supply				$ 77.18
88	318052804		Gasket, Cooktop		Appelez-nous	-
130	318125005		Shield, Burner Box		Appelez-nous	-
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 10.11
136	318264301		Support, Box, (2)				$ 47.72
137	305458000		Screw, Lock Bracket, (2)		Appelez-nous	-
19A	318168038		Pan, Burner, Large, Black		Appelez-nous	-
19B	318168032		Pan, Burner, Small, Black		Appelez-nous	-
22A	5304508510		Cap, 12k Burner, Black				$ 38.85
22B	5304508441		Cap, 5k Burner, Matte, Black			Immediately	$ 38.93
88A	318052803		Gasket, Cooktop		Appelez-nous	-
NIA	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
