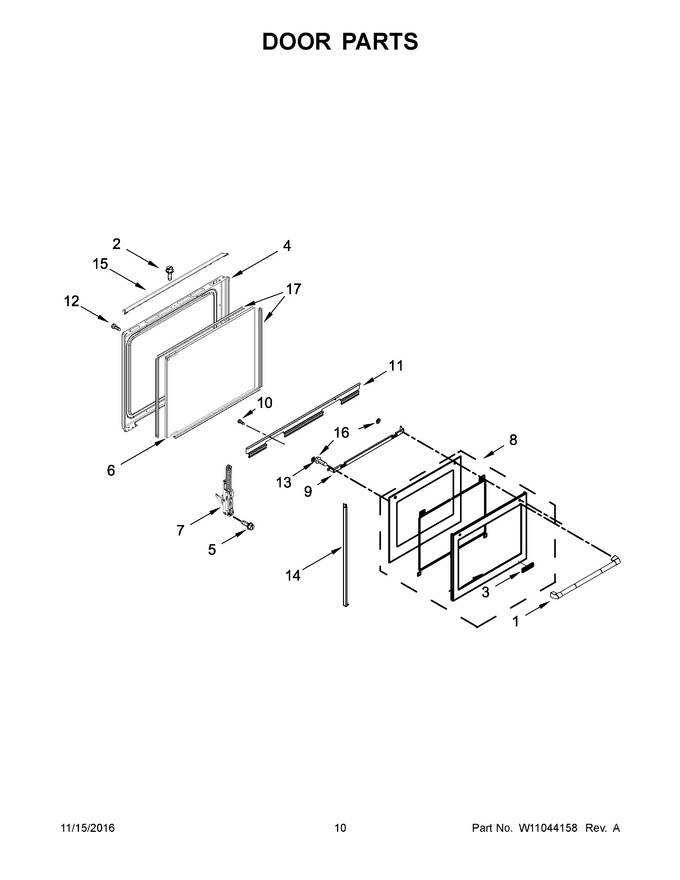

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11234410 | Assembly, Door Handle (stainless) (Replaces: W10483386) |
|
$ 237.48 | |||||
| 2 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 14.75 | ||||
| 3 | WPW10159578 | Badge (stainless) (Replaces: W10159578) |
|
Immediately | $ 88.54 | ||||
| 4 | W10902192 | Liner, Door (Replaces: W10826568) |
|
$ 335.04 | |||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 6 | W11339500 | Glass, Inner (Replaces: W10813616) |
|
$ 171.17 | |||||
| 7 | W11226493 | Hinge, Slow Close (Replaces: W10885516) |
|
$ 114.99 | |||||
| 8 | W10634269 | Panel, Door (stainless) |
|
$ 313.15 | |||||
| 9 | W10541911 | Bracket, Glass Upper Handle |
|
Immediately | $ 39.92 | ||||
| 10 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 8.80 | ||||
| 11 | W10813140 | Rail, Horizontal Support |
|
Immediately | $ 177.21 | ||||
| 12 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 13 | W10530626 | Screw |
|
$ 16.76 | |||||
| 14 | W11744483 | Rail, Vertical Support (Replaces: W10813139) |
|
Immediately | $ 76.19 | ||||
| 15 | W11025120 | Scoop, Door (stainless) (Replaces: W10551024) |
|
$ 123.01 | |||||
| 16 | W11676355 | Washer, Door (Replaces: W10319024) |
|
Immediately | $ 14.81 | ||||
| 17 | W11673273 | Spacer, Glass (Replaces: W10813142) |
|
Immediately | $ 31.04 |
