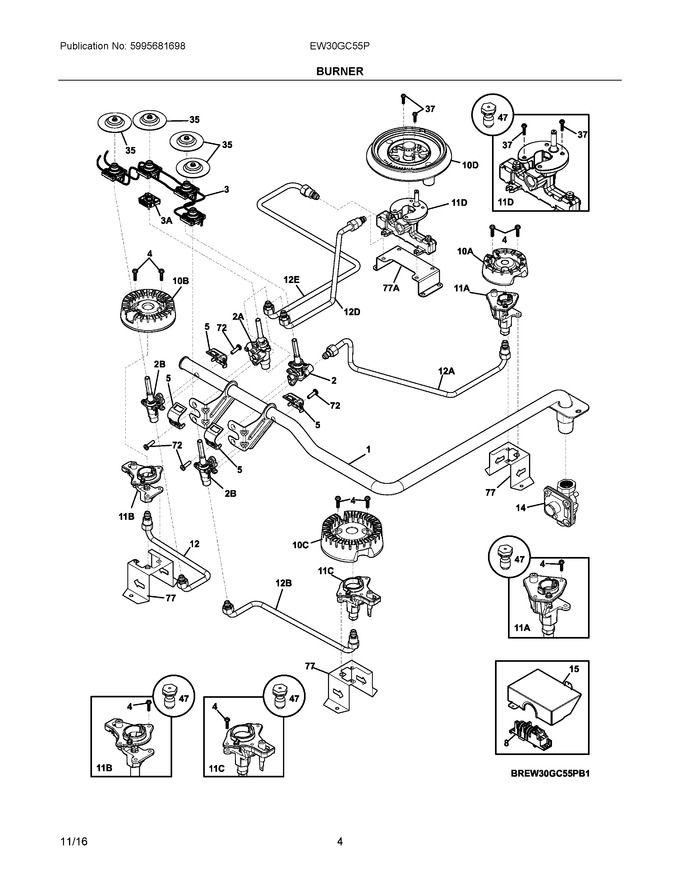

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304508578		Manifold Pipe		Appelez-nous	-
2	5304508471		Valve, Saddle, 670/750 Btu, Orange Stem				$ 75.84
3	5304527982		Switch Assembly, Ignitor, W/harness   (Replaces: 305595114)				$ 34.88
4	316240600		Screw, Hex Wash, 6-32 X .485   (Replaces: 5304472956)			Immediately	$ 13.48
5	357733402		Bracket, Valve Fixing				$ 10.73
8	5304505695		Module, Spark, 4 Outputs			Immediately	$ 75.73
12	305595400		Tubing, Top Burner, Lh Front		Appelez-nous	-
14	5304519943		Regulator, Pressure   (Replaces: 318122727)				$ 144.37
15	318024209		Deflector, Spark Module				$ 21.16
35	5304508440		Bushing, Insulating			Immediately	$ 12.64
37	305309701		Screw, Phil, 4.2 X 6.5, (20)				$ 6.30
47	808695301		Lp Conversion Kit		Appelez-nous	-
72	5304508436		Screw, Saddle Valve, M4		Appelez-nous	-
77	318920309		Bracket, Burner Mtg, (3)		Appelez-nous	-
10A	316438200		Burner, Sealed, 5k			Immediately	$ 63.00
10B	316558300		Burner, Sealed, 9.5k			Immediately	$ 58.28
10C	316438600		Burner, Sealed, 14k				$ 88.67
10D	5304501023		Burner Assembly, G5				$ 184.43
11A	5304498786		Ignitor/orifice Assy., Top Burner, 5k				$ 92.14
11B	5304498787		Ignitor/orifice Assy., Top Burner, 9.5k				$ 133.14
11C	5304500255		Ignitor/orifice Assy., Top Burner, 14k				$ 74.03
11D	5304529110		Ignitor/orifice Assy., Top Burner, Twin, 18k, W/holder   (Replaces: 316440108)			Immediately	$ 168.98
12A	305595600		Tubing, Top Burner, Rh Rear		Appelez-nous	-
12B	305595500		Tubing, Top Burner, Rh Front		Appelez-nous	-
12D	5304508581		Tube, Dual Burner, Secondary		Appelez-nous	-
12E	5304508580		Tube, Dual Burner, Main		Appelez-nous	-
2A	5304508579		Valve, Saddle, 1500/2000 Btu, Yellow Stem, Twin Burner				$ 148.39
2B	5304508464		Valve, Saddle, 1800/2000 Btu, Red Stem			Immediately	$ 73.31
3A	5304508439		Adapter, Switch, Dual Valve				$ 17.69
77A	305583001		Bracket, Burner, Dual				$ 10.66
NI	305338702		Screw, (4)		Appelez-nous	-
NI	305338602		Screw		Appelez-nous	-
NIA	318199779		Wiring Harness, Ignitor				$ 129.10
NIA	803910601		Screw		Appelez-nous	-
NIB	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-
NIDA	316566901		Sleeve, Insulator				$ 14.32
