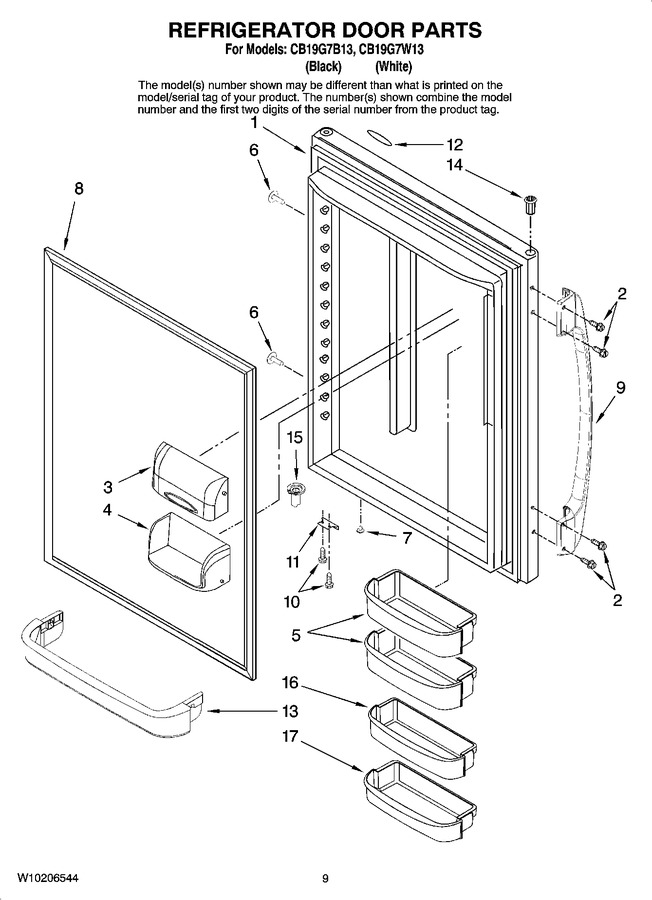

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004036		Door, Refrigerator (black)		Appelez-nous	-
1	67004039		Door, Refrigerator (white)		Appelez-nous	-
2	67006668		Screw, Handle (white)				$ 12.83
2	67006806		Screw, Handle (black)				$ 14.02
3	WP67003637		Door, Dairy   (Replaces: 67003637)			Immediately	$ 82.67
4	WP67001279		Tray, Dairy   (Replaces: 67001279)			Immediately	$ 88.01
5	67001141		Bucket, Small (2)			Immediately	$ 78.91
6	67007166		Screw, Handle Hole (black)		Appelez-nous	-
6	12991103		Screw, Handle Hole (white)				$ 12.03
7	10712401		Plug, Button (2) (white)				$ 7.79
7	67004838		Plug, Button (2) (black)				$ 11.21
8	WPW10443309		Gasket, Door (white)   (Replaces: W10130148)			Immediately	$ 365.24
8	WPW10436245		Gasket, Door (black)   (Replaces: 12683815B)				$ 362.36
9	67006721		Handle, Door (white)		Appelez-nous	-
9	67006805		Handle, Door (black)		Appelez-nous	-
10	WP98165		Screw   (Replaces: 67006287)				$ 8.57
11	12968202W		Stop, Door (white)   (Replaces: 67003779)				$ 69.29
11	67003782		Stop, Door (black)		Appelez-nous	-
12	67005427		Nameplate (white)		Appelez-nous	-
12	67005429		Nameplate (black)		Appelez-nous	-
13	67001139		Retainer, Ref Door   (Replaces: 67001296)			Immediately	$ 104.79
14	67004978		Bushing (4) (black)				$ 22.10
14	WP67004977		Bushing (4) (white)   (Replaces: 67004977)				$ 8.20
15	WP67003639		Closure, Door (black)   (Replaces: 67003639)				$ 90.32
15	WP67003638		Closure, Door (white)   (Replaces: 67003638)			Immediately	$ 8.15
16	WP67001021		Bucket, Medium (1)   (Replaces: 67001021)				$ 84.95
17	67004840		Bucket, Short (1)		Appelez-nous	-
