SELECT A DIAGRAM

01 - Cover Sheet

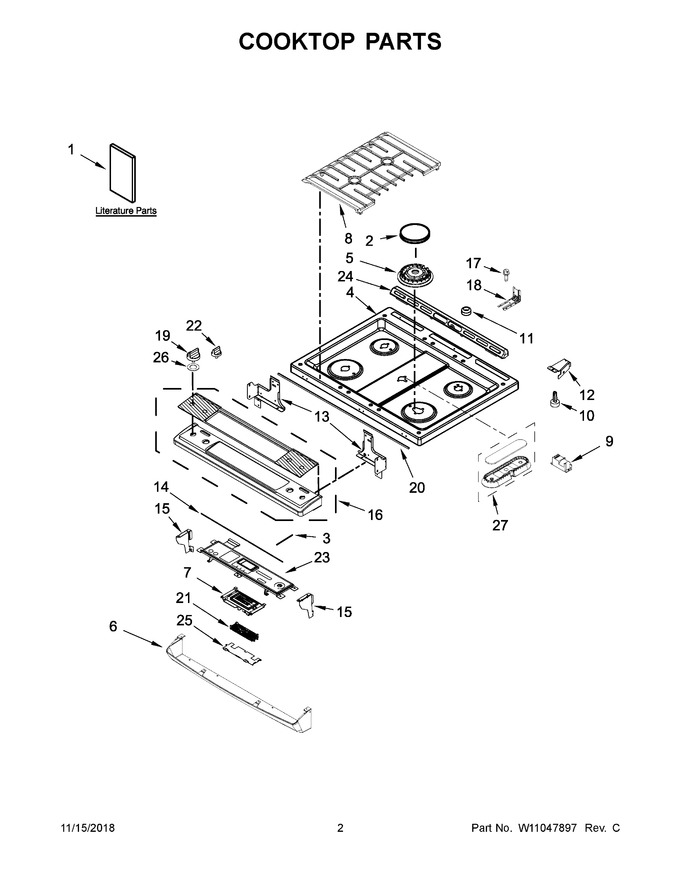

02 - Cooktop Parts


03 - Chassis Parts


04 - Manifold Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10665256		Instructions, Installation		Appelez-nous	-
1	W11124007		Instructions, Installation		Appelez-nous	-
2	W11161846		Kit, Burner Cap (black)   (Replaces: W10837262)			Immediately	$ 118.19
3	W11744482		Gasket, Console Short   (Replaces: W10689102)				$ 22.92
4	W11043365		Cooktop (black)   (Replaces: W10884169)				$ 541.63
5	WPW10256028		Spreader, Flame (left Front & Right Front)   (Replaces: W10256028)			Immediately	$ 137.69
6	W11218703		Panel, Lower Console (black)   (Replaces: W10570527)			Immediately	$ 162.27
7	W11122852		Assembly, Display   (Replaces: W10759327)			Immediately	$ 527.64
8	W11175813		Kit, Grate (black)   (Replaces: W10432521)				$ 364.92
9	WPW10475149		Module, Spark (5+0)   (Replaces: W10475149)			Immediately	$ 179.05
10	W11189172		Glide, Main Top   (Replaces: 8016P022-60)			Immediately	$ 17.61
11	W11104127		Bumper   (Replaces: W10664705)			Immediately	$ 21.97
12	W10162253		Brace, Corner (left)				$ 74.13
13	W10289170		Support, Cooktop (left)				$ 30.05
14	W10802457		Gasket, Console   (Replaces: W10689101)				$ 21.33
15	W10547960		Bracket, Console (left)				$ 23.22
16	W10680371		Assembly, Console (stainless)				$ 509.33
17	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 30.72
18	W11502257		Bracket, Anti-tip   (Replaces: W10606241)			Immediately	$ 23.03
19	W11049637		Knob (stainless)   (Replaces: W10876615)				$ 83.99
20	W10802441		Gasket, Console/cooktop   (Replaces: W10612719)			Immediately	$ 22.73
21	W11050556		Control, Electronic   (Replaces: W10759301)			Immediately	$ 463.49
22	W11049638		Knob, Mini (stainless)   (Replaces: W10876616)				$ 83.78
23	W11049250		Assembly, Overlay (stainless)   (Replaces: W10888920)			Immediately	$ 313.83
24	W11256338		Trim, Vent (black)   (Replaces: W10577781)				$ 205.56
25	W10558372		Bracket, Control				$ 25.10
26	W11131701		Bushing (black)   (Replaces: W10739036)				$ 23.27
27	W11162114		Spreader, Flame   (Replaces: W10298664)				$ 89.90
12A	W10162252		Brace, Corner (right)				$ 78.59
13A	W10289169		Support, Cooktop (right)				$ 30.05
15A	W10547961		Bracket, Console (right)				$ 23.22
15B	W10598048		Bracket, Console (center)				$ 25.73
1A	W11123989		Guide, Use & Care		Appelez-nous	-
1A	W10844285		Guide, Use & Care		Appelez-nous	-
1B	W10844271		Sheet, Tech		Appelez-nous	-
1C	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1C	W10400066		Guide, Quick Start (english)		Appelez-nous	-
1D	W10400067		Guide, Quick Start (french)		Appelez-nous	-
1D	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
1E	W10400066		Guide, Quick Start (english)		Appelez-nous	-
1F	W10400067		Guide, Quick Start (french)		Appelez-nous	-
5A	W10836467		Spreader, Flame (left Rear)   (Replaces: W10464795)				$ 47.63
5B	WPW10256025		Spreader, Flame (right Rear & Center)   (Replaces: W10256025)			Immediately	$ 91.07
9A	W10860916		Module, Spark (0+2)   (Replaces: W10457998)			Immediately	$ 284.59
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	W10911849		Harness, Main				$ 234.51
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10580282		Harness, Main				$ 318.43
NI	W11198972		Harness, Bake/broil   (Replaces: W10754419)				$ 35.84
NI	W10580265		Harness, Bake/warm Drawer			Immediately	$ 88.03
NI	W11025616		Harness, Keypad   (Replaces: W10575120)			Immediately	$ 53.35
NI	W11176109		Harness, Display   (Replaces: W10598169)			Immediately	$ 224.96
NI	W10580229		Wire, Ground				$ 38.22

    View Diagram in Separate Window       Print Part List
