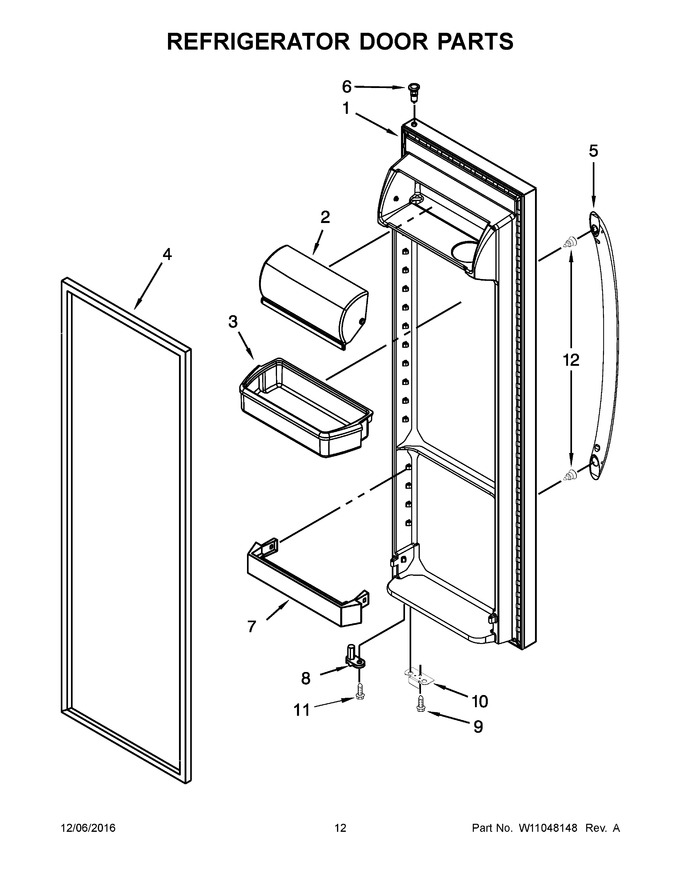

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10428790		Refrigerator Door (includes Item 4) (white)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 89.42
3	WP2187172		Door Bin   (Replaces: 2187172)			Immediately	$ 45.09
4	2159073		Gasket, Door (beige)   (Replaces: 2309600)				$ 333.19
5	W10210942A		Handle (white)   (Replaces: W10210942)				$ 129.53
6	WP2182181		Thimble   (Replaces: 2182181)				$ 8.15
7	WP2309941		Trivet   (Replaces: 2309941)			Immediately	$ 76.32
8	WP2182179		Thimble, Cam   (Replaces: 2182178)			Immediately	$ 7.20
9	WP489483		Screw   (Replaces: 489420)				$ 11.41
10	W10219801		Bracket, Door Stop (silver)				$ 5.27
11	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
12	WPW10288153		Screw   (Replaces: W10288153)			Immediately	$ 9.65
1A	W10750030		Refrigerator Door (includes Item 4) (black)		Appelez-nous	-
1B	W10590563		Refrigerator Door (includes Item 4) (stainless)		Appelez-nous	-
4A	2159081		Gasket, Door (black)   (Replaces: 2309653)				$ 335.58
5A	W10210942A		Handle (black)   (Replaces: W10210943)				$ 129.53
5B	WPW10257120		Handle (grey)   (Replaces: W10257120)				$ 59.70
