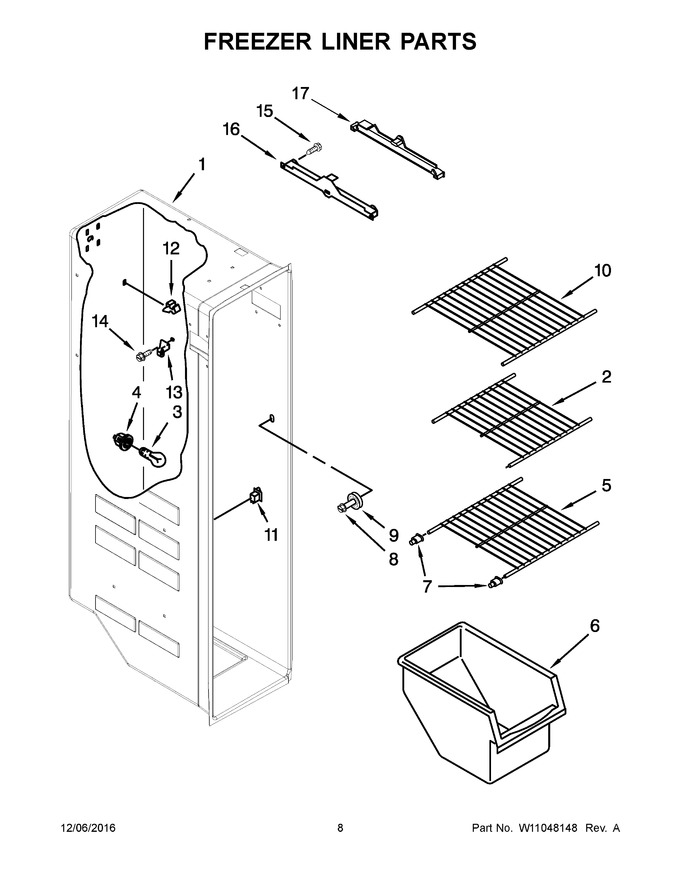

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | WPW10318960 | Shelf, Wire (short) (Replaces: W10318960) |
|
Immediately | $ 90.12 | ||||
| 3 | W11679940 | Bulb, Light (Replaces: 2311792) |
|
Immediately | $ 11.30 | ||||
| 4 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 110.16 | ||||
| 5 | WPW10318952 | Shelf, Wire (Replaces: W10318952) |
|
Immediately | $ 88.08 | ||||
| 6 | WP2309758 | Freezer Bin (Replaces: 2309758) |
|
Immediately | $ 124.47 | ||||
| 7 | WPW10130299 | Cup, Shelf (Replaces: W10130299) |
|
Immediately | $ 14.00 | ||||
| 8 | W10191952 | Screw |
|
$ 5.65 | |||||
| 9 | W11527119 | Assembly, Shelf Stud (Replaces: W10173127) |
|
- | |||||
| 10 | WPW10318953 | Shelf, Wire (Replaces: W10318953) |
|
Immediately | $ 83.58 | ||||
| 11 | W11457217 | Switch, Rocker Arm Combination (freezer) (Replaces: 1115373) |
|
$ 38.18 | |||||
| 12 | 2215823 | Clip, Air Duct (Replaces: 2315163) |
|
$ 10.42 | |||||
| 13 | 2196206 | Stud, Support |
|
- | |||||
| 14 | W10142289 | Screw (Replaces: 3400893) |
|
$ 9.15 | |||||
| 15 | 718257 | Screw (Replaces: 489100) |
|
- | |||||
| 16 | W10845585 | Slide, Ice Container (left) |
|
$ 132.77 | |||||
| 17 | W10845583 | Slide, Ice Container (right) |
|
$ 123.92 |
