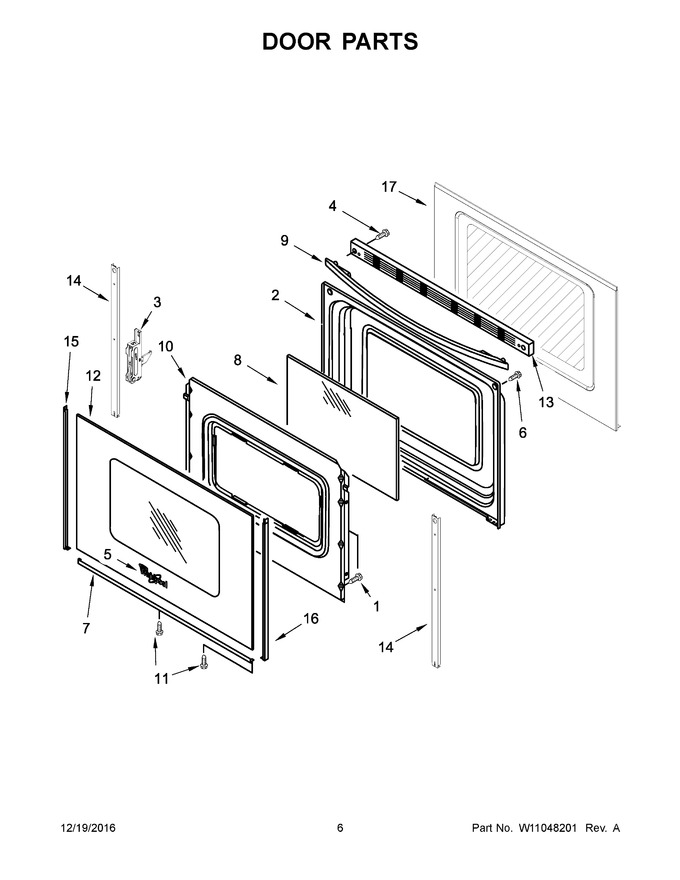

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.74
2	WP9761344		Liner, Door   (Replaces: 9761344)			Immediately	$ 372.89
3	WPW10440013		Hinge, Door (active)   (Replaces: W10440013)			Immediately	$ 63.80
4	WPW10200660		Screw   (Replaces: W10200660)			Immediately	$ 8.24
5	W10849465		Badge (white)			Immediately	$ 82.81
6	W10817436		Screw   (Replaces: W10168559)			Immediately	$ 8.14
7	W11594186		Trim, Lower Door (white)   (Replaces: 8523175)			Immediately	$ 61.37
8	W11399628		Glass, Inner   (Replaces: W10620754)				$ 171.68
9	W10817434		Handle, Oven Door (white)   (Replaces: W10323588)			Immediately	$ 234.82
10	W11685635		Retainer, Insulation   (Replaces: 9761505)				$ 188.29
11	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 14.72
12	W11702168		Glass, Window (black)   (Replaces: W10886896)				$ 185.87
13	WPW10310922		Trim, Oven Door Vent (black)   (Replaces: W10310922)			Immediately	$ 175.37
14	W11502236		Strap, Door   (Replaces: W10544179)			Immediately	$ 27.68
15	WP8523172		Trim, Door (white (left))   (Replaces: 8523172)			Immediately	$ 69.93
16	WP8523166		Trim, Door (white (right))   (Replaces: 8523166)			Immediately	$ 84.23
17	W11214475		Glass Assembly, Outer Door (stainless)   (Replaces: W10890951)				$ 425.73
12A	W10904906		Glass, Window (white)   (Replaces: W10851723)				$ 228.32
13A	W10817433		Trim, Oven Door Vent (white)   (Replaces: W10310920)			Immediately	$ 103.27
5A	W11240541		Badge (stainless)   (Replaces: W10846752)			Immediately	$ 77.95
9A	WPW10144883		Handle, Oven Door (stainless)   (Replaces: W10144883)				$ 252.66
