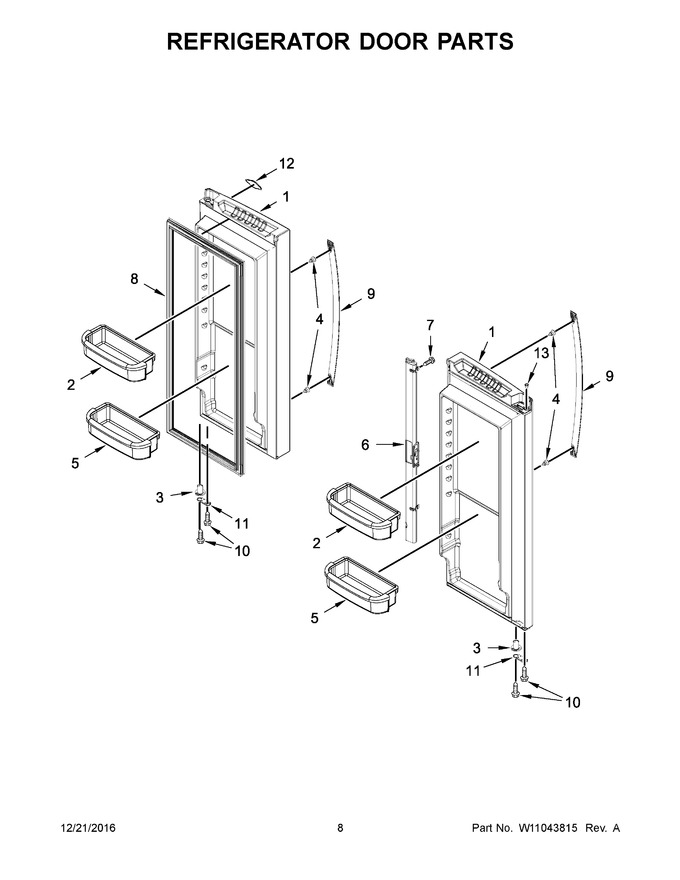

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107888WQ | Door, Refrigerator Left Hand (white) (Replaces: 13107888W) |
|
$ 995.87 | |||||
| 2 | WPW10289497 | Bucket, Gallon (Replaces: W10289497) |
|
Immediately | $ 81.09 | ||||
| 3 | WP67003638 | Closure, Door (white) (Replaces: 12028505W) |
|
Immediately | $ 8.15 | ||||
| 4 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 5 | WPW10371194 | Bucket, Medium (Replaces: W10371194) |
|
Immediately | $ 77.23 | ||||
| 6 | WP12722803W | Mullion, Door (white) (Replaces: 12722803W) |
|
Immediately | $ 261.21 | ||||
| 7 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 8 | W10830189 | Gasket, Door (white) |
|
$ 228.91 | |||||
| 9 | W11127179 | Handle, Door (white) (Replaces: W10887612) |
|
Immediately | $ 190.44 | ||||
| 10 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 11 | 12968202W | Stop, Door (white) |
|
$ 69.29 | |||||
| 12 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 87.26 | ||||
| 13 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 11A | W11708403 | Stop, Door (black) (Replaces: 12968202B) |
|
Immediately | $ 14.75 | ||||
| 11B | W11703060 | Stop, Door (grey) (Replaces: 12968202AP) |
|
$ 15.46 | |||||
| 1A | W10865014 | Door, Refrigerator Left Hand (black) (Replaces: W10861180) |
|
$ 1,082.24 | |||||
| 1B | W10919641 | Door, Refrigerator Left Hand (black Stainless) (Replaces: W10879200) |
|
$ 1,216.66 | |||||
| 1C | W10915640 | Door, Refrigerator Left Hand (stainless) (Replaces: W10890275) |
|
$ 1,171.33 | |||||
| 1D | 13107887WQ | Door, Refrigerator Right Hand (white) (Replaces: 13107887W) |
|
$ 1,004.76 | |||||
| 1E | W10865013 | Door, Refrigerator Right Hand (black) (Replaces: W10861182) |
|
$ 1,109.47 | |||||
| 1F | W10919633 | Door, Refrigerator Right Hand (black Stainless) (Replaces: W10879190) |
|
$ 1,211.82 | |||||
| 1G | W10910852 | Door, Refrigerator Right Hand (stainless) (Replaces: W10890281) |
|
$ 1,180.96 | |||||
| 3A | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 90.32 | |||||
| 3B | WP12028505AP | Closure, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 6A | WP12722803B | Mullion, Door (black) (Replaces: 12722803BN) |
|
Immediately | $ 206.80 | ||||
| 6B | WP12722803AP | Mullion, Door (grey) (Replaces: 12722803APN) |
|
Immediately | $ 177.93 | ||||
| 8A | W11368721 | Gasket, Door (black) (Replaces: W10830206) |
|
Immediately | $ 169.21 | ||||
| 8B | W10830162 | Gasket, Door (grey) |
|
Immediately | $ 212.57 | ||||
| 9A | W11099758 | Handle, Door (black) (Replaces: W10887611) |
|
$ 183.99 | |||||
| 9B | W11043764 | Handle, Door (black Stainless) (Replaces: W10917722) |
|
$ 190.44 | |||||
| 9C | W11044488 | Handle, Door (stainless) (Replaces: W10874799) |
|
$ 190.44 |
