SELECT A DIAGRAM

01 - Cover Sheet


02 - Top And Cabinet Parts

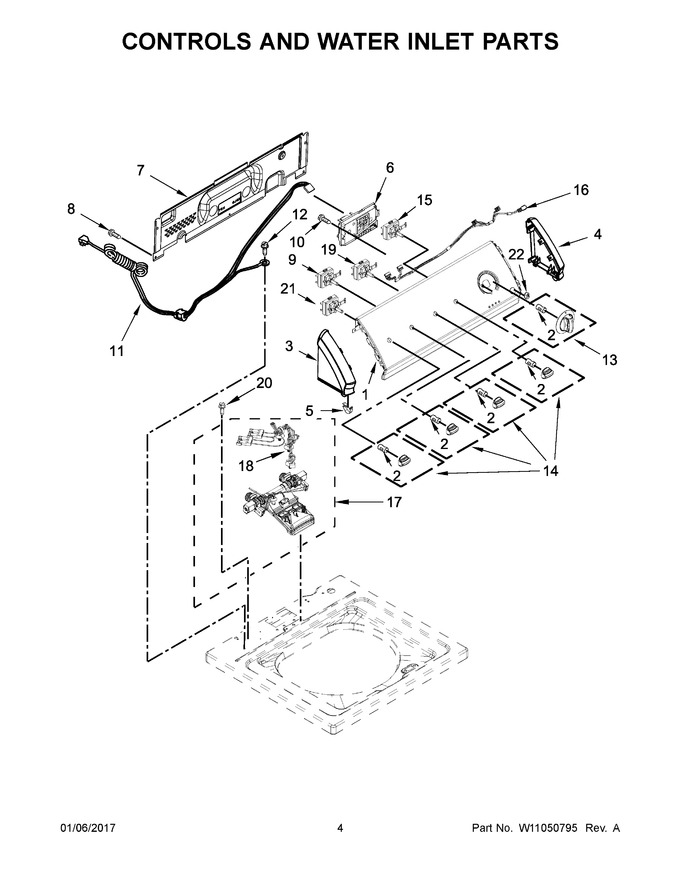

03 - Controls And Water Inlet Parts


04 - Basket And Tub Parts


05 - Gearcase, Motor And Pump Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11082588		Panel, Console   (Replaces: W11025639)		Appelez-nous	-
2	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
3	WP8559502		End Cap (left) (white)   (Replaces: 8559502)				$ 72.99
4	WP8559501		End Cap (right) (white)   (Replaces: 8559501)				$ 72.77
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
6	W11116594		Control Unit Assembly, Machine And Motor   (Replaces: W11048591)			Immediately	$ 500.08
7	W10641362		Panel, Console Rear Cover				$ 180.84
8	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 8.40
9	WPW10285518		Switch, Rotary Encoder (5 Position)   (Replaces: W10285518)			Immediately	$ 117.42
10	WP90767		Screw   (Replaces: 90767)			Immediately	$ 8.25
11	W10877409		Cord, Power   (Replaces: W10737739)				$ 130.00
12	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 8.20
13	W10317457		Knob, Timer (grey)		Appelez-nous	-
14	W10317458		Assembly, Control Knob (grey)		Appelez-nous	-
15	WPW10285511		Switch, Rotary Encoder (2 Position)   (Replaces: W10285511)			Immediately	$ 182.10
16	W10694686		Harness, Upper		Appelez-nous	-
17	W11210459		Inlet Assembly, Water   (Replaces: W10869799)			Immediately	$ 102.67
18	W10868094		Harness, Valve				$ 186.11
19	WPW10285512		Switch, Rotary Encoder (4 Position)   (Replaces: W10285512)			Immediately	$ 190.47
20	WPW10213953		Screw   (Replaces: W10213953)			Immediately	$ 7.55
21	WPW10285517		Switch, Rotary Encoder (3 Position)   (Replaces: W10285517)				$ 135.86
22	W10272474		Pushbutton, Start		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
