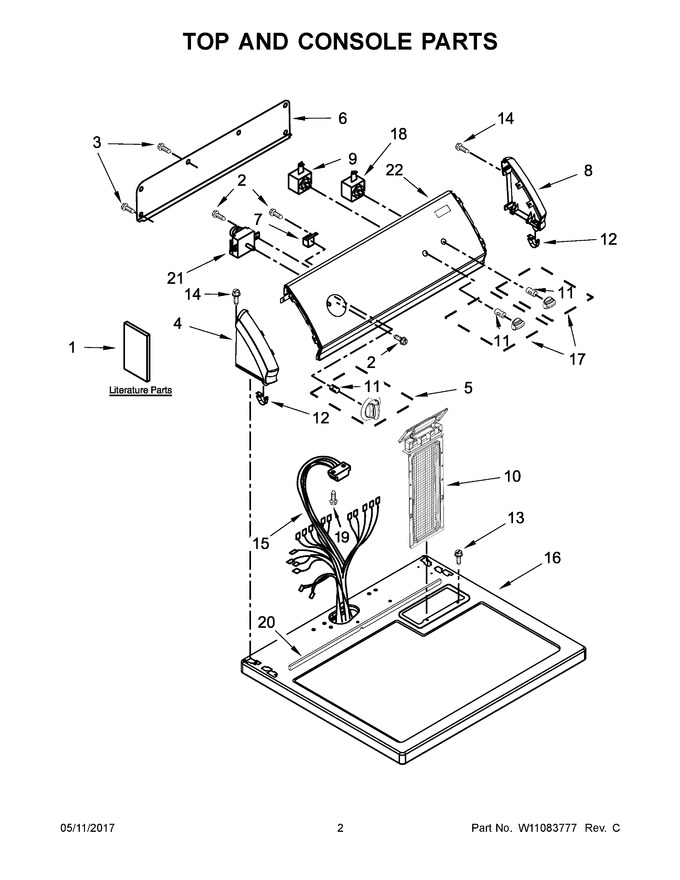

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10848818		Installation Instructions		Appelez-nous	-
2	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 7.82
3	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.19
4	WP8559502		End Cap (left) (white)   (Replaces: 8559502)				$ 69.51
5	W10317457		Assembly, Timer Knob (grey)		Appelez-nous	-
6	W10103406		Panel, Rear   (Replaces: 8274261)				$ 128.87
7	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 127.67
8	WP8559501		End Cap (right) (white)   (Replaces: 8559501)				$ 69.30
9	WP3399639		Switch, Temperature   (Replaces: 3399639)				$ 124.91
10	W11778253		Lint Screen (white)   (Replaces: W10717210)			Immediately	$ 52.03
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.81
12	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
13	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.06
14	WP3400818		Screw   (Replaces: 3400818)				$ 7.96
15	W10740200		Harness, Wiring   (Replaces: W10186095)		Appelez-nous	-
16	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 332.62
17	W10317458		Assembly, Control Knob (grey)		Appelez-nous	-
18	WPW10117655		Switch, Push To Start   (Replaces: W10117655)			Immediately	$ 85.60
19	WP681414		Screw   (Replaces: 343641)			Immediately	$ 7.85
20	W10316616		Seal, Foam				$ 26.47
21	WPW10185982		Assembly, Timer (60 Hz.)   (Replaces: W10185982)			Immediately	$ 150.34
22	W11089351		Assembly, Control Panel & Bracket   (Replaces: W11026908)		Appelez-nous	-
1A	W10096992		Use & Care Guide		Appelez-nous	-
1B	W10185985		Wiring Diagram		Appelez-nous	-
