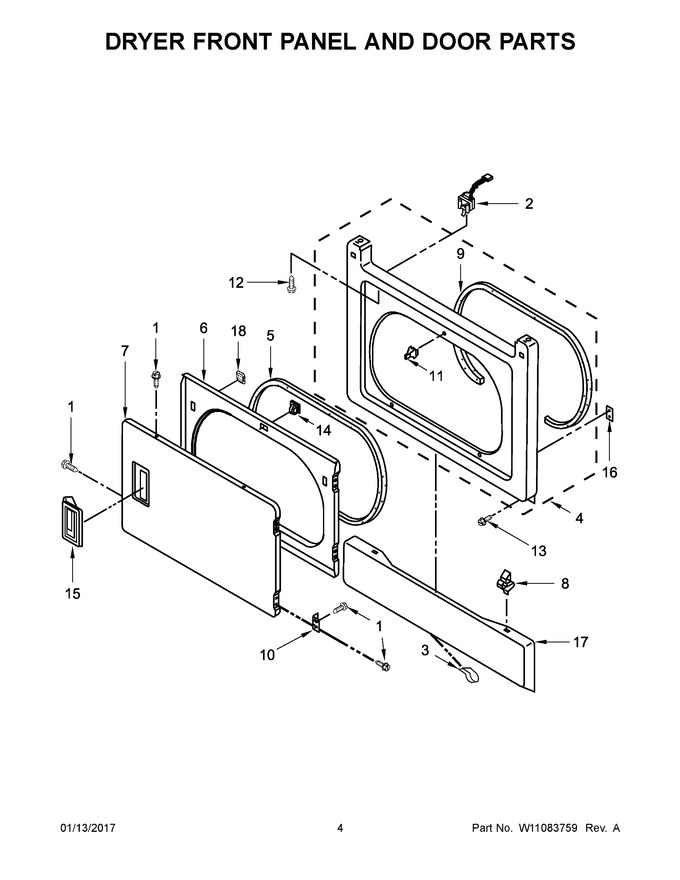

03 - Dryer Front Panel And Door Parts


04 - Dryer Cabinet And Motor Parts


05 - Dryer Bulkhead Parts


06 - Dryer Support And Washer Harness Parts


07 - Washer Top And Lid Parts


08 - Washer Cabinet Parts


09 - Brake, Clutch, Gearcase, Motor And Pump Parts


10 - Machine Base Parts


11 - Agitator, Basket And Tub Parts


12 - Gearcase Parts


13 - Brake And Drive Tube Parts


14 - Water System Parts


15 - 3402855 Burner Assembly


16 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP488627		Screw   (Replaces: 342055)				$ 8.11
2	WP3406107		Switch, Door   (Replaces: W10569603)			Immediately	$ 31.20
3	WP98234		Clip, Ground   (Replaces: 98234)			Immediately	$ 11.96
4	W11085935		Panel, Front   (Replaces: W10892728)			Immediately	$ 391.70
5	W10823582		Seal, Door				$ 117.52
6	W10907639		Door, Rear   (Replaces: W10878120)				$ 210.01
7	W11663440		Door, Front   (Replaces: W10322546)				$ 272.34
8	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 8.45
9	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
10	WPW10279703		Hinge, Assembly (silver)   (Replaces: W10279703)				$ 75.83
11	W11751471		Strike, Door   (Replaces: W10601014)				$ 7.78
12	WP3395530		Screw   (Replaces: 697773)				$ 8.57
13	WP308685		Screw   (Replaces: 3393008)			Immediately	$ 7.87
14	W11429587		Assembly, Door Catch   (Replaces: W10610880)			Immediately	$ 26.55
15	W10877261		Handle, Door (white)   (Replaces: W10095180)				$ 90.77
16	WP3390902		Clip, Door Hinge   (Replaces: 3390902)				$ 11.67
17	3388958		Panel, Toe				$ 138.76
18	WPW10529197		Bezel, Door Catch   (Replaces: W10529197)			Immediately	$ 25.46
