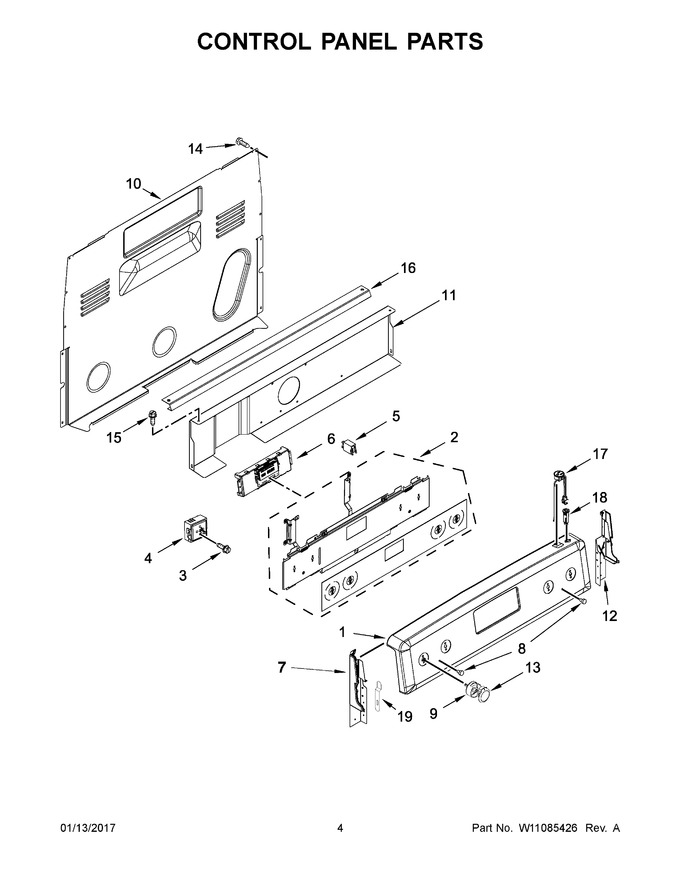

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10645851		Console (stainless)				$ 273.42
2	W10692154		Assembly, Active Overlay (black)				$ 223.92
3	WPW10067840		Screw   (Replaces: W10067840)				$ 8.30
4	W10911303		Switch, Infinite (right Rear)   (Replaces: W10578768)			Immediately	$ 104.64
5	WP8523265		Light, Indicator (125v)   (Replaces: 8523265)			Immediately	$ 86.31
6	W10804973		Control. Maxwell   (Replaces: W10699279)				$ 302.45
7	W11404310		End Cap, Left (black (left))   (Replaces: W10409002)				$ 77.00
8	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 6.26
9	W11368920		Bezel, Knob   (Replaces: W10645811)			Immediately	$ 60.55
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 219.04
11	W10134247		Shield, Heat			Immediately	$ 358.82
12	W10409003		End Cap, Right (black (right))				$ 84.09
13	W10915061		Knob (stainless)   (Replaces: W10823535)				$ 74.50
14	W11245710		Screw   (Replaces: 9780274)			Immediately	$ 14.75
15	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 14.72
16	W10525121		Bracket, Console Mounting				$ 98.85
17	W10861164		Receptacle (black)   (Replaces: W10749729)			Immediately	$ 18.47
18	WP9757602		Breaker, Circuit (black)   (Replaces: 9757602)			Immediately	$ 53.81
19	3196200		Clip, Spring				$ 10.45
4A	W10857622		Switch, Infinite (dual) (left Front & Right Front)   (Replaces: W10437092)			Immediately	$ 211.69
4B	W10917724		Switch, Infinite (left Rear)   (Replaces: W10437094)			Immediately	$ 129.35
