SELECT A DIAGRAM

1 - Control Panel


2 - Body Parts


3 - Door

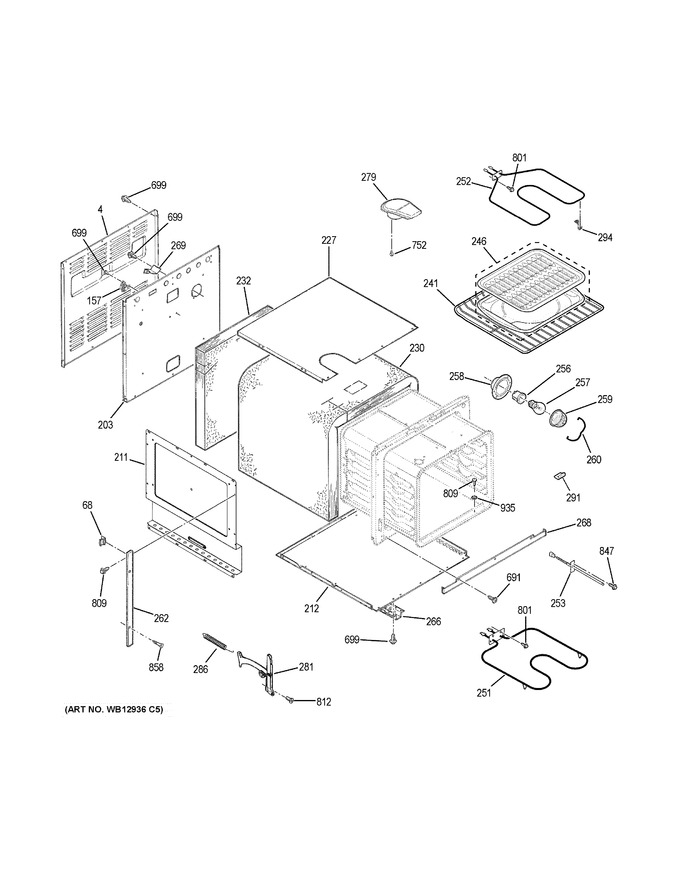

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	WB63M45		Cabinet Back		Appelez-nous	-
68	WB02T10164		Spacer Frt Trim (blk)		Appelez-nous	-
157	WB24K5098		Limit Switch-body		Appelez-nous	-
203	WB63T10105		Back Main		Appelez-nous	-
211	WB02T10197		Retainer Insln Sde		Appelez-nous	-
212	WB63K5116		Bottom Cab		Appelez-nous	-
227	WB2K5176		Ins Ov Top Retainer		Appelez-nous	-
230	WB35K5041		Insulation-inner Wrap-lo		Appelez-nous	-
232	WB35K5067		Insulation-back Btm-low		Appelez-nous	-
241	WB48T10094		Rack Oven		Appelez-nous	-
246	WS01A00265		Broiler Pan & Rack Large 12-3/4 X 16-1/   (Replaces: WB48X10056)				$ 67.51
251	WB44X26290		Element Bake (2000w)		Appelez-nous	-
252	WB44T10111		Element Broil (3400w)		Appelez-nous	-
253	WB21X5347		Wb21x5301		Appelez-nous	-
256	WB8X303		Ov Lamp Holder		Appelez-nous	-
257	40A15		40watt 15amp			Immediately	$ 1.98
258	WG02F04577		Oven Light Cup   (Replaces: WB02T10037)				$ 28.58
259	WG02F04576		Ov Lamp Lens   (Replaces: WB36X389)				$ 18.59
260	WB2X7694		Light Lens Bail		Appelez-nous	-
262	WB07T10370		Trim Vert Sde		Appelez-nous	-
266	WB2X9634		Bottom Channel		Appelez-nous	-
268	WB07T10415		Trim Frt Frm Lwr		Appelez-nous	-
269	WB2K5164		Cup Light Support		Appelez-nous	-
279	WB38K5028		Wb38k5051		Appelez-nous	-
281	WB10T10060		Hinge Ov Dr Rt		Appelez-nous	-
281	WB10T10061		Hinge Ov Dr Lt		Appelez-nous	-
286	WB09T10008		Spring Oven Dr Lwr		Appelez-nous	-
291	WB2X9152		Cover		Appelez-nous	-
294	WS01A01413		Broil Element Support   (Replaces: WB2X9719)				$ 10.54
691	WB1K5162		Screw		Appelez-nous	-
699	WB1K5150		Screw St10-16 X 7/16"		Appelez-nous	-
752	WG02A00488		Screw   (Replaces: WB1K5200)				$ 4.20
801	WB01M10002		Screw		Appelez-nous	-
809	WG02A00781		Screw   (Replaces: WB1X1137)				$ 14.29
812	WB1K5191		Screw Flat Zinc 10-32		Appelez-nous	-
847	WB02T10324		Scr 6-20 Gxb Ihxw 3/8 Ni		Appelez-nous	-
858	WB1X1413		Wood Screw-blk		Appelez-nous	-
935	WB1K5174		Washer		Appelez-nous	-
