SELECT A DIAGRAM

1 - Gas & Burner Parts

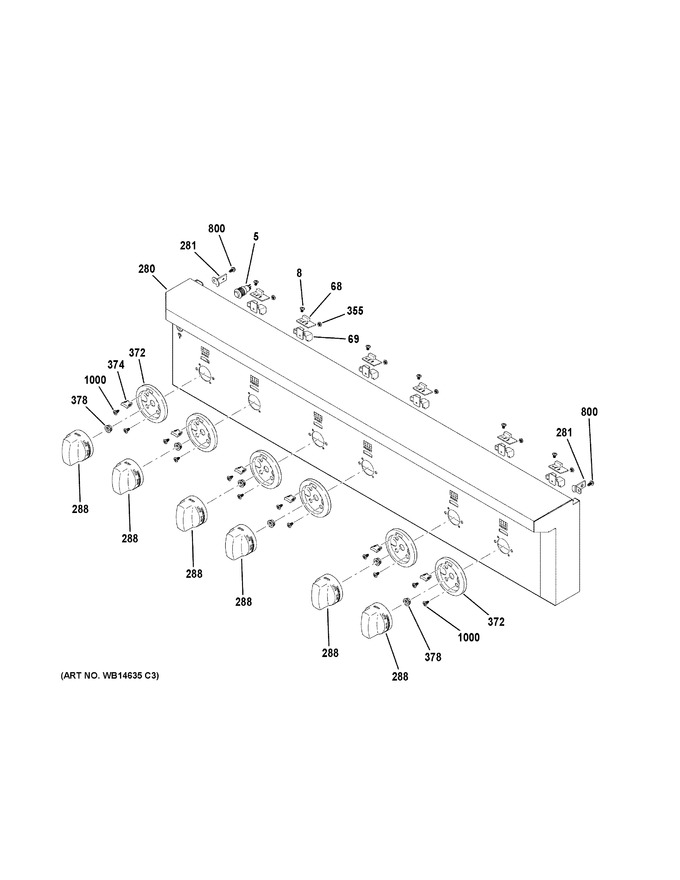

2 - Control Panel


3 - Cooktop


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	WB24X26719		Switch-led Asm		Appelez-nous	-
8	WS01A01212		Screw 8-32   (Replaces: WB01K10002)				$ 88.13
68	WB25K10014		Led Board		Appelez-nous	-
69	WB02K10214		Bracket Led		Appelez-nous	-
280	WB36X27767		Control Panel & Rail Asm		Appelez-nous	-
281	WB02K10211		Bracket Control Panel		Appelez-nous	-
288	WB03K10359		Knob Asm		Appelez-nous	-
355	WB01K10029		Screw 832 1/8		Appelez-nous	-
372	WB07K10299		Bezel Knob		Appelez-nous	-
374	WB02K10216		Lens Bezel		Appelez-nous	-
378	WB02K10217		Bushing Bezel		Appelez-nous	-
800	WB01K10042		Scr 8-18 Ab Ihw 3/8 Sn		Appelez-nous	-
1000	WB01K10086		Scr 8-18 Ab Trp 3/8 Ss		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
