Diagram # Part Number Description Series Availability Ships Price Add to Cart
320 WR32X26812 Qc Mullion Asm 36 Appelez-nous -
327 WR32X26076 Pan Quick Chill Asm 36" Appelez-nous -
328 WR31X20918 Qc Damper Kit Appelez-nous -
329 WR71X11060 Veg Wire Frame Modified Appelez-nous -
330 WR13X21081 Cover Qc Damper Appelez-nous -
331 WR13X21082 Cover Qc Appelez-nous -
344 WR31X20917 Qc Housing Asm Kit Appelez-nous -
348 WR51X10138 Heater Thaw Appelez-nous -
380 WR02X13054 Cover Water Lines Appelez-nous -
394 WR23X25746 Harness Ff Lower Appelez-nous -
894 WG03F07360 Thermostat Cutoff   (Replaces: WR50X10088) Special Order $ 88.13


    View Diagram in Separate Window     Print Icon   Print Part List

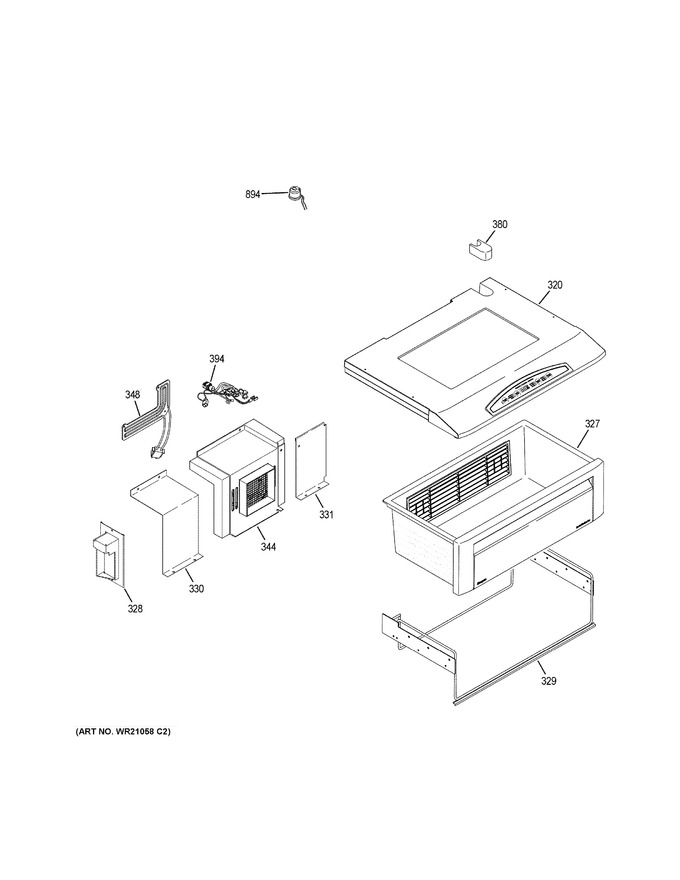

Diagram for ZISS360DKBSS
