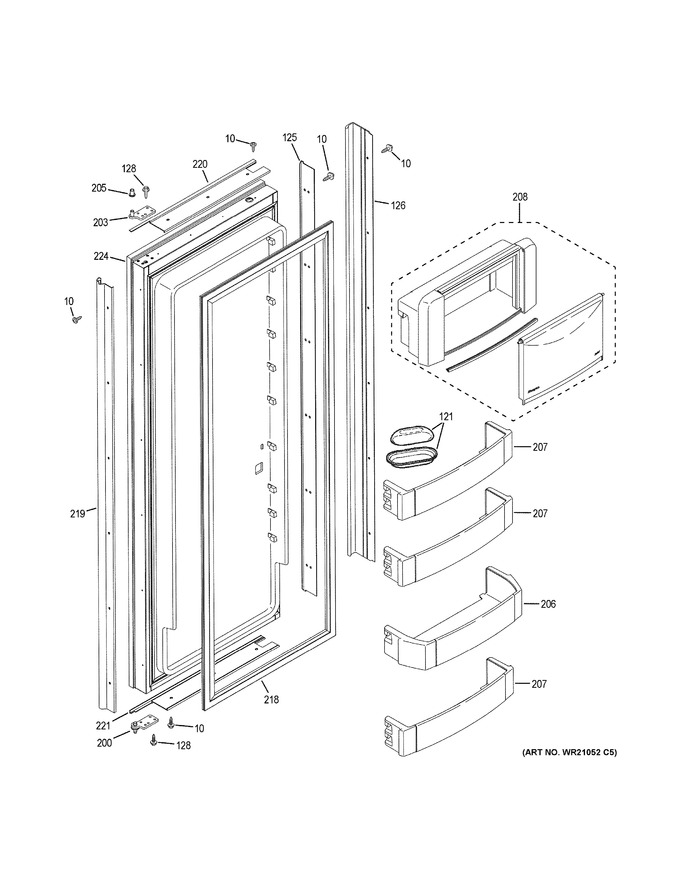

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	WR01X24363		Scr 8- 18 Ba Ovt 5/8 Ss		Appelez-nous	-
121	WR19X10005		Butter Dish And Cover		Appelez-nous	-
125	WR38X10271		Handle Trim		Appelez-nous	-
126	WR01L06145		Handle   (Replaces: WR12X10526)				$ 179.10
128	WR01X21024		Screw, 1/4-20 Tt Bht .87		Appelez-nous	-
200	WR13X10657		Hinge Door Btm		Appelez-nous	-
203	WR13X25052		Hinge Asm Door Top Rh		Appelez-nous	-
205	WG03A00012		Bushing Hinge Top   (Replaces: WR02X10954)				$ 49.33
206	WR71X25589		Bin Asm Gallon 42		Appelez-nous	-
207	WR71X25603		Bin Door Asm 42		Appelez-nous	-
208	WR71X26790		Dairy Bin Door Asm 42		Appelez-nous	-
218	WG03A04708		Gasket Door   (Replaces: WR24X10205)				$ 162.77
219	WR38X10272		Door Trim Ff Side		Appelez-nous	-
220	WR38X10330		Door Trim Ff Top		Appelez-nous	-
221	WR38X10331		Door Trim Ff Bottom		Appelez-nous	-
224	WR78X12132		Door Foamed Asm Ff Sxs		Appelez-nous	-
