Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 31-1000002 Pm Install Instructions Appelez-nous -
1 31-51945 Pm Mini Manual Appelez-nous -
2 WR01X10304 Hardware Pack Appelez-nous -
31 WR17X23167 Grill Drip Dispenser Special Order $ 179.84

36 WR01F01784 Solenoid Asm   (Replaces: WR62X10055) Special Order $ 88.99

45 WR2X8818 Retainer Recess Door Appelez-nous -
55 WR01F00145 Board Asm Disp Lighting   (Replaces: WR55X10899) Special Order $ 15.88

58 WR17X12771 Housing Shield Disp Appelez-nous -
63 WG03A00047 Spring Recess Door   (Replaces: WR02X10585) In-Stock Immediately $ 3.97

67 WR01L00935 Crank Door Recess   (Replaces: WR17X10706) Special Order $ 12.71

69 WR01F00833 Funnel Ice Disp   (Replaces: WR17X12120) Special Order $ 54.09

70 WR17X23460 Paddle Dispenser Appelez-nous -
72 WR23X10783 Switch Appelez-nous -
74 WR01A00922 Spring Torsion   (Replaces: WR02X12256) Special Order $ 23.82

93 WR55X11048 Glass Disp Panel Subasly Appelez-nous -
100 WR78X23232 Door Foam Asm Fz Sxs Dsp Appelez-nous -
102 WR13X10238 Top Sxs Fz Door Hinge As Appelez-nous -
106 WR01X10297 Fz Bottom Hinge Bushing Appelez-nous -
107 WR24X10203 Gasket Door Appelez-nous -
108 WR71X25604 Bin Door Asm 36/48 Appelez-nous -
119 WR01L01914 Door Recess Assy   (Replaces: WR17X3093) Special Order $ 65.21

120 WR78X27023 48" Euro Disp Door Wrap Fz Appelez-nous -
126 WR12X10949 Tubular Ss Handle Asm Appelez-nous -
128 WR01X21024 Screw, 1/4-20 Tt Bht .87 Appelez-nous -
136 WG03F00574 Stand-off Ss   (Replaces: WR02X10165) Special Order $ 112.62

137 WR01X10026 Screw Set 10-32 Appelez-nous -
138 WR01X10057 Screw #10-32x3/4 Cr Tr H Appelez-nous -
200 WR13X10657 Hinge Door Btm Appelez-nous -
854 WR23X23462 Harness Recess Dispenser Appelez-nous -
890 WG04A01239 #10x1 Ph Sms   (Replaces: WD2X295) Special Order $ 3.97

1000 WR02X24203 Connector Water Line Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

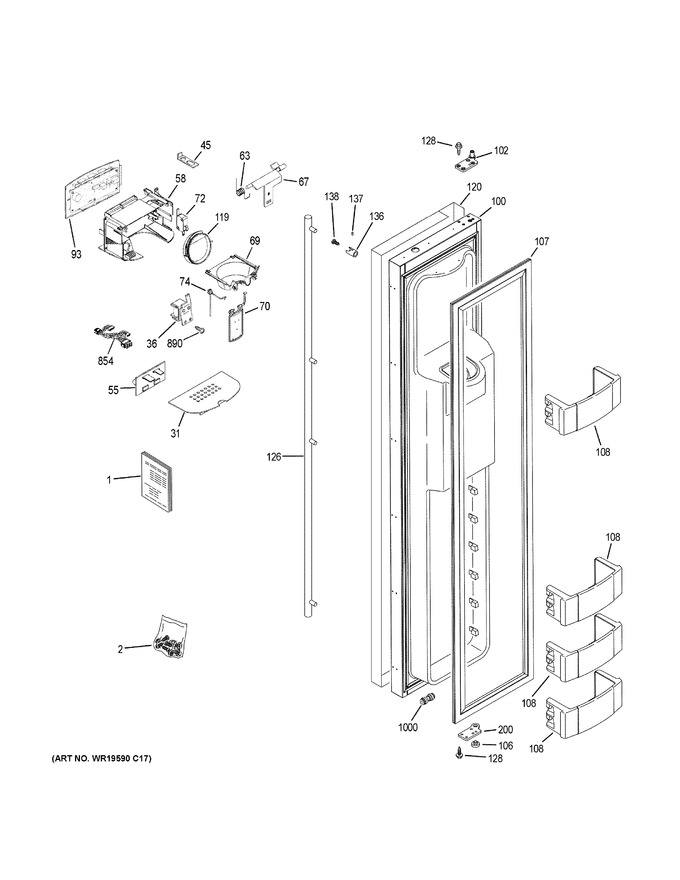

Diagram for ZISS480DKBSS
